Spring MVC 项目搭建

环境配置

maven依赖

<dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-webmvc</artifactId>
  <version>5.2.1.RELEASE</version>
</dependency>

<dependency>
  <groupId>javax.servlet</groupId>
  <artifactId>javax.servlet-api</artifactId>
  <version>4.0.1</version>
  <scope>provided</scope>
</dependency>

<!-- AspectJ表达式支持，可选 -->
<dependency>
  <groupId>org.aspectj</groupId>
  <artifactId>aspectjweaver</artifactId>
  <version>1.9.4</version>
</dependency>

web.xml

使用Java配置方式时，可以不配置web.xml。但如果从兼容性考虑，某些中间件可能必须配置web.xml，则可以保留一个基础的web.xml

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">
</web-app>

Java配置

使用Java代码配置代替传统的web.xml配置

public class WebAppInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {

    // 指定root上下文配置类
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class<?>[] {RootConfig.class};
    }

    // 指定servlet上下文配置类
    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class<?>[] {DispatcherServletConfig.class};
    }

    // 指定DispatcherServlet的servlet mapping
    @Override
    protected String[] getServletMappings() {
        return new String[] {"/"};
    }

    // 配置web.xml的init-param，multipart-config等
    @Override
    protected void customizeRegistration(ServletRegistration.Dynamic registration) {
    }

    // 配置应用于DispatcherServlet的filter
    @Override
    protected Filter[] getServletFilters() {
        return new Filter[] {
        };
    }
}

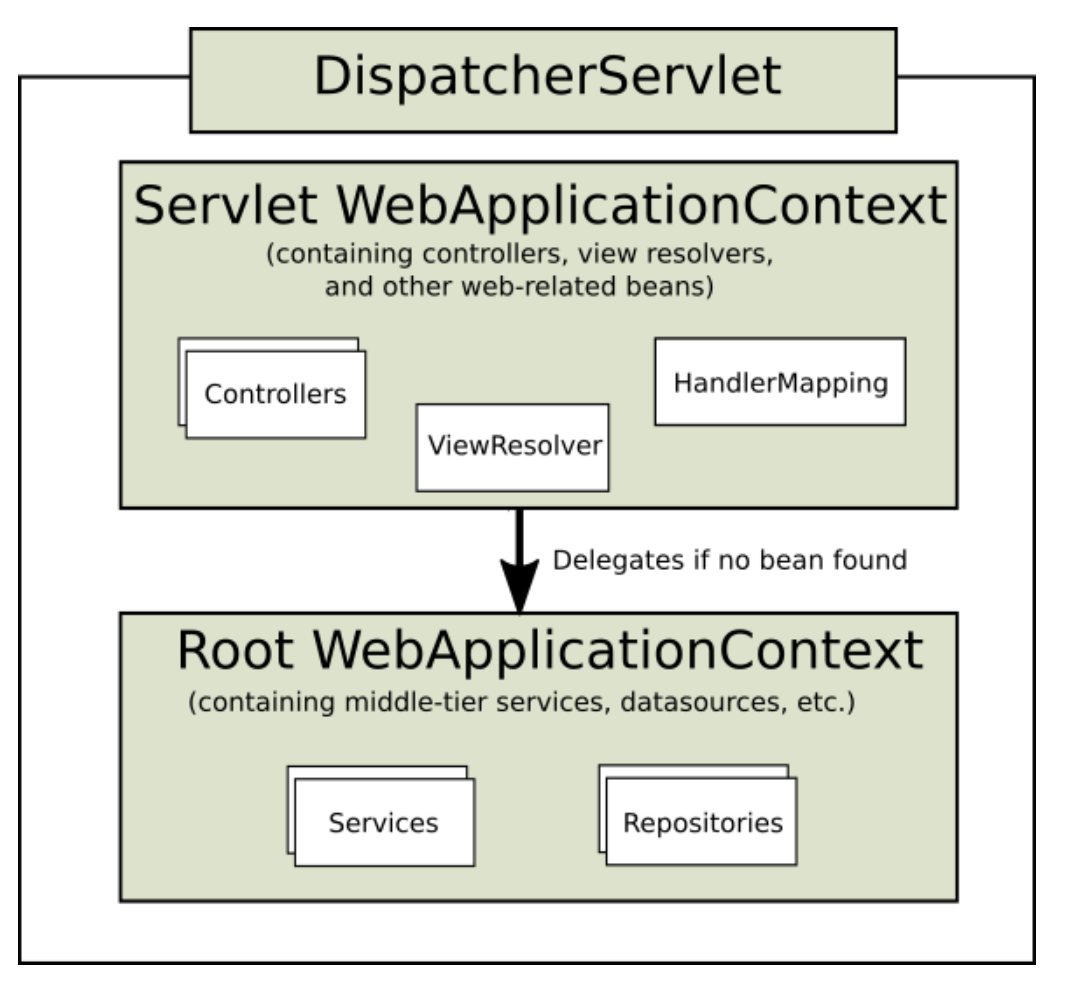

继承AbstractAnnotationConfigDispatcherServletInitializer是最方便的配置做法，默认配置两个WebApplicationContext，这两个上下文的配置Java类通过getRootConfigClasses和getServletConfigClasses来指定。获取bean时优先从servlet上下文获取，假如找不到bean，则再去root上下文中获取。一般web项目可以只使用servlet上下文

Java Web项目架构#MVC

Java代码方式注册bean，代替传统的beans.xml配置

@Configuration
@ComponentScan(basePackages = "com.oc",
    includeFilters = {
        @ComponentScan.Filter(type = FilterType.ASPECTJ, pattern = "com.oc..service..*"),
        @ComponentScan.Filter(type = FilterType.ASPECTJ, pattern = "com.oc..component..*"),
        @ComponentScan.Filter(type = FilterType.ASPECTJ, pattern = "com.oc..repository..*")
    })
public class RootConfig {
    // 在root上下文中显式注册bean
}

@Configuration
@EnableWebMvc
@ComponentScan(basePackages = "com.oc",
    includeFilters = {
        @ComponentScan.Filter(type = FilterType.ASPECTJ, pattern = "com.oc..controller..*"),
    })
public class DispatcherServletConfig {
    // 在servlet上下文中显式注册bean
}

模板引擎

引入Thymeleaf

<dependency>
  <groupId>org.thymeleaf</groupId>
  <artifactId>thymeleaf-spring5</artifactId>
  <version>3.0.11.RELEASE</version>
</dependency>

DispatcherServletConfig.java注册Thymeleaf相关的三个bean

templateResolver为templateEngine服务，接收到templateEngine给的视图名称，根据视图模板名，找到相应的视图模板文件
templateEngine为viewResolver服务，接收到viewResolver给的视图名称，调用templateResolver，拿到视图模板文件，解析视图模板文件，渲染视图，渲染数据模型，最终返回渲染后的视图
viewResolver为controller服务，接收到controller给的视图名称，调用templateEngine，拿到处理后的视图，返回给controller

@Configuration
@EnableWebMvc
@ComponentScan(basePackages = "com.oc",
    includeFilters = {
        @ComponentScan.Filter(type = FilterType.ASPECTJ, pattern = "com.oc..controller..*"),
        @ComponentScan.Filter(type = FilterType.ASPECTJ, pattern = "com.oc..view..*")
    })
public class DispatcherServletConfig implements WebMvcConfigurer, ApplicationContextAware {
    private ApplicationContext applicationContext;

    @Bean
    public ITemplateResolver templateResolver() {
        SpringResourceTemplateResolver templateResolver = new SpringResourceTemplateResolver();
        templateResolver.setApplicationContext(this.applicationContext);
        templateResolver.setPrefix("classpath:/template/");
        templateResolver.setSuffix(".html");
        templateResolver.setTemplateMode(TemplateMode.HTML);
        templateResolver.setCacheable(false);
        templateResolver.setCharacterEncoding("UTF-8");
        return templateResolver;
    }

    @Bean
    public ISpringTemplateEngine templateEngine() {
        SpringTemplateEngine templateEngine = new SpringTemplateEngine();
        templateEngine.setTemplateResolver(templateResolver());
        templateEngine.setEnableSpringELCompiler(true);
        templateEngine.addDialect(new SpringSecurityDialect());
        return templateEngine;
    }

    @Bean
    public ViewResolver viewResolver() {
        ThymeleafViewResolver viewResolver = new ThymeleafViewResolver();
        viewResolver.setTemplateEngine(templateEngine());
        viewResolver.setCharacterEncoding("UTF-8");
        return viewResolver;
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }
}

编写controller

@Controller
public class SignController {
    @RequestMapping(value = "/signIn", method = RequestMethod.GET)
    public String signIn() {
        return "signIn";
    }
}

访问形如http://localhost:8080/signIn的URL，则将会返回名称为signIn的视图，该视图对应的文件为classpath:/template/signIn.html，源代码的位置一般为src/main/resource/template/signIn.html

静态资源处理

DispatcherServletConfig实现WebMvcConfigurer，并重写addResourceHandlers方法

@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
    registry.addResourceHandler("/static/common/**").addResourceLocations("classpath:/common/");
    registry.addResourceHandler("/static/template/**").addResourceLocations("classpath:/template/");
    registry.addResourceHandler("/static/pic/**").addResourceLocations("classpath:/pic/");

    String userHomePath = System.getProperty("user.home").replaceAll("\\\\", "/");
    String picturesPath = "file:" + userHomePath + this.picturesPath;
    registry.addResourceHandler("/static/picture/**").addResourceLocations(picturesPath);
}

配置消息转换器

消息转换器作用于即将返回给客户端的响应信息，对响应信息进行处理，例如处理字符编码，处理JSON格式数据等

DispatcherServletConfig实现WebMvcConfigurer，并重写configureMessageConverters方法

@Override
public void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
    Charset utf8Charset = StandardCharsets.UTF_8;
    StringHttpMessageConverter converter = new StringHttpMessageConverter(utf8Charset);
    converters.add(converter);

    MappingJackson2HttpMessageConverter jsonConverter = new MappingJackson2HttpMessageConverter();
    converters.add(jsonConverter);
}

参考文档
