Java容器HashMap源码分析

transient Node<K,V>[] table;

static class Node<K,V> implements Map.Entry<K,V> {
    final int hash;
    final K key;
    V value;
    Node<K,V> next;

    Node(int hash, K key, V value, Node<K,V> next) {
        this.hash = hash;
        this.key = key;
        this.value = value;
        this.next = next;
    }

    public final K getKey()        { return key; }
    public final V getValue()      { return value; }
    public final String toString() { return key + "=" + value; }

    public final int hashCode() {
        return Objects.hashCode(key) ^ Objects.hashCode(value);
    }

    public final V setValue(V newValue) {
        V oldValue = value;
        value = newValue;
        return oldValue;
    }

    public final boolean equals(Object o) {
        if (o == this)
            return true;
        if (o instanceof Map.Entry) {
            Map.Entry<?,?> e = (Map.Entry<?,?>)o;
            if (Objects.equals(key, e.getKey()) &&
                Objects.equals(value, e.getValue()))
                return true;
        }
        return false;
    }
}

static final int TREEIFY_THRESHOLD = 8;
static final int MIN_TREEIFY_CAPACITY = 64;

final void treeifyBin(Node<K,V>[] tab, int hash) {
    int n, index; Node<K,V> e;
    // 容器大小小于转化限制时，不转化红黑树，而是先扩容
    if (tab == null || (n = tab.length) < MIN_TREEIFY_CAPACITY)
        resize();
    else if ((e = tab[index = (n - 1) & hash]) != null) {
        TreeNode<K,V> hd = null, tl = null;
        do {
            TreeNode<K,V> p = replacementTreeNode(e, null);
            if (tl == null)
                hd = p;
            else {
                p.prev = tl;
                tl.next = p;
            }
            tl = p;
        } while ((e = e.next) != null);
        if ((tab[index] = hd) != null)
            hd.treeify(tab);
    }
}

static final int UNTREEIFY_THRESHOLD = 6;

// 指定默认容量为16
static final int DEFAULT_INITIAL_CAPACITY = 1 << 4; // aka 16

public HashMap(int initialCapacity, float loadFactor) {
    // 对指定容量的非法值和特殊值的处理
    if (initialCapacity < 0)
        throw new IllegalArgumentException("Illegal initial capacity: " +
                                           initialCapacity);
    if (initialCapacity > MAXIMUM_CAPACITY)
        initialCapacity = MAXIMUM_CAPACITY;
    if (loadFactor <= 0 || Float.isNaN(loadFactor))
        throw new IllegalArgumentException("Illegal load factor: " +
                                           loadFactor);
    this.loadFactor = loadFactor;
    // 求出满足条件的容量大小，容量大小放在threshold属性
    this.threshold = tableSizeFor(initialCapacity);
}

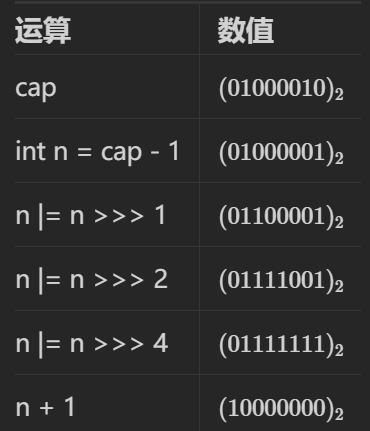

static final int tableSizeFor(int cap) {
    // 将指定容量减1后，把最高位的1之后的所有低位全部置为1
    int n = cap - 1;
    n |= n >>> 1;
    n |= n >>> 2;
    n |= n >>> 4;
    n |= n >>> 8;
    n |= n >>> 16;
    // 处理特殊值，正常值则加1
    return (n < 0) ? 1 : (n >= MAXIMUM_CAPACITY) ? MAXIMUM_CAPACITY : n + 1;
}

static final int MAXIMUM_CAPACITY = 1 << 30;

static final float DEFAULT_LOAD_FACTOR = 0.75f;

final Node<K,V>[] resize() {
    Node<K,V>[] oldTab = table;
    int oldCap = (oldTab == null) ? 0 : oldTab.length;
    int oldThr = threshold;
    int newCap, newThr = 0;
    if (oldCap > 0) {
        if (oldCap >= MAXIMUM_CAPACITY) {
            threshold = Integer.MAX_VALUE;
            return oldTab;
        }
        // 常规情况下扩容，容量大小与扩容阈值都乘以2
        else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY &&
                 oldCap >= DEFAULT_INITIAL_CAPACITY)
            newThr = oldThr << 1; // double threshold
    }
    else if (oldThr > 0) // initial capacity was placed in threshold
        // 数组未初始化或未有元素，初始化HashMap时容量大小已指定并放置在threshold，容量大小取threshold值
        newCap = oldThr;
    else {               // zero initial threshold signifies using defaults
        // 数组未初始化或未有元素，初始化HashMap时未指定容量大小，按默认值设置容量大小和扩容阈值
        newCap = DEFAULT_INITIAL_CAPACITY;
        newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY);
    }
    if (newThr == 0) {
        // 数组未初始化或未有元素，在此处指定新的扩容阈值
        float ft = (float)newCap * loadFactor;
        newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ?
                  (int)ft : Integer.MAX_VALUE);
    }
    threshold = newThr;
    @SuppressWarnings({"rawtypes","unchecked"})
    // 根据容量大小初始化数组，或创建扩容后数组
    Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap];
    table = newTab;
    if (oldTab != null) {
        // 旧数组有值，需要重新安排元素位置
        for (int j = 0; j < oldCap; ++j) {
            Node<K,V> e;
            if ((e = oldTab[j]) != null) {
                oldTab[j] = null;
                if (e.next == null)
                    // 链表只有一个元素，通过新计算的位置转移链表
                    newTab[e.hash & (newCap - 1)] = e;
                else if (e instanceof TreeNode)
                    // 红黑树处理
                    // split方法中，假如红黑树节点数量减少到小于等于限制值，则红黑树将转化为链表
                    ((TreeNode<K,V>)e).split(this, newTab, j, oldCap);
                else { // preserve order
                    Node<K,V> loHead = null, loTail = null;
                    Node<K,V> hiHead = null, hiTail = null;
                    Node<K,V> next;
                    do {
                        // 遍历原链表中的每一个元素，通过扩容哈希求模优化切分成两个链表，再放到对应的新位置上
                        next = e.next;
                        if ((e.hash & oldCap) == 0) {
                            if (loTail == null)
                                loHead = e;
                            else
                                loTail.next = e;
                            loTail = e;
                        }
                        else {
                            if (hiTail == null)
                                hiHead = e;
                            else
                                hiTail.next = e;
                            hiTail = e;
                        }
                    } while ((e = next) != null);
                    if (loTail != null) {
                        loTail.next = null;
                        newTab[j] = loHead;
                    }
                    if (hiTail != null) {
                        hiTail.next = null;
                        newTab[j + oldCap] = hiHead;
                    }
                }
            }
        }
    }
    return newTab;
}

final V putVal(int hash, K key, V value, boolean onlyIfAbsent,
               boolean evict) {
    Node<K,V>[] tab; Node<K,V> p; int n, i;
    if ((tab = table) == null || (n = tab.length) == 0)
        // 数组未初始化或未有元素，调用resize，初始化数组
        n = (tab = resize()).length;
    // 哈希求模优化，求模转化为按位与
    if ((p = tab[i = (n - 1) & hash]) == null)
        // 链表第一个元素，直接放进数据即可
        tab[i] = newNode(hash, key, value, null);
    else {
        Node<K,V> e; K k;
        if (p.hash == hash &&
            ((k = p.key) == key || (key != null && key.equals(k))))
            // 链表已有元素，第一个元素是相同的key，取出原来的Node
            e = p;
        else if (p instanceof TreeNode)
            // 链表已转为红黑树，将值存放到红黑树中，若有旧值则返回
            e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
        else {
            // 链表已有元素，第一个元素不是相同的key，从链表的第二个元素开始遍历
            for (int binCount = 0; ; ++binCount) {
                if ((e = p.next) == null) {
                    // 在链表中找不到相同key的元素，链表尾加上新的元素
                    p.next = newNode(hash, key, value, null);
                    if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st
                        // 加入新元素后，链表元素个数超过TREEIFY_THRESHOLD限制值，转化为红黑树
                        treeifyBin(tab, hash);
                    break;                }
                if (e.hash == hash &&
                    ((k = e.key) == key || (key != null && key.equals(k))))
                    // 在链表中找到相同key的元素，此时e指向旧值
                    break;
                // 遍历链表移动指针
                p = e;
            }
        }
        if (e != null) { // existing mapping for key
            // 存在旧值，e不为空
            V oldValue = e.value;
            if (!onlyIfAbsent || oldValue == null)
                // 替换新值
                e.value = value;
            afterNodeAccess(e);
            return oldValue;
        }
    }
    ++modCount;
    if (++size > threshold)
        // 放入元素后，元素总个数大于扩容阈值，调用resize
        resize();
    afterNodeInsertion(evict);
    return null;
}

final Node<K,V> getNode(int hash, Object key) {
    Node<K,V>[] tab; Node<K,V> first, e; int n; K k;
    if ((tab = table) != null && (n = tab.length) > 0 &&
        (first = tab[(n - 1) & hash]) != null) {
        // 通过哈希求模获取元素位置，该位置的链表不为空
        if (first.hash == hash && // always check first node
            ((k = first.key) == key || (key != null && key.equals(k))))
            // 要查找的元素的key与链表中的第一个元素的key相等，查找成功
            return first;
        if ((e = first.next) != null) {
            if (first instanceof TreeNode)
                // 红黑树查找
                return ((TreeNode<K,V>)first).getTreeNode(hash, key);
            do {
                // 遍历链表中的所有元素,找到匹配的元素则查找成功
                if (e.hash == hash &&
                    ((k = e.key) == key || (key != null && key.equals(k))))
                    return e;
            } while ((e = e.next) != null);
        }
    }
    return null;
}

static final int hash(Object key) {
    int h;
    // 将原始key的哈希值与自身逻辑右移16位的结果按位异或
    return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}
