使用Canal同步MySQL到Elasticsearch

  • Oct 18, 2021

MySQL配置

开启MySQL的binlog写入，并指定binlog为ROW模式

my.cnf

[mysqld]
log-bin=mysql-bin
binlog-format=ROW
server_id=1

添加Canal使用的用户

CREATE USER canal IDENTIFIED BY 'canal';
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%';
FLUSH PRIVILEGES;

Canal配置

安装Canal

先把默认配置信息复制出来

mkdir -p /opt/volume/canal

docker run --name canal --rm -d canal/canal-server
docker cp canal:/home/admin/canal-server/conf /opt/volume/canal

docker stop canal

配置文件

/opt/volume/canal/example/instance.properties

canal.instance.master.address=192.168.88.171:3306

# binlog日志名
canal.instance.master.journal.name=
# binlog起始偏移量
canal.instance.master.position=
# binlog起始时间戳
canal.instance.master.timestamp=

canal.instance.dbUsername=canal
canal.instance.dbPassword=canal

# 监听所有表，指定库写法为db\..*
canal.instance.filter.regex=.*\\..*

# 路由键
canal.mq.topic=example

查看binlog信息

show master status;

/opt/volume/canal/canal.properties

# 关联到rabbitMQ配置
canal.serverMode = rabbitMQ

rabbitmq.host =192.168.88.141
rabbitmq.virtual.host = /
rabbitmq.exchange = canalExchange
rabbitmq.username = root
rabbitmq.password = rabbitmqroot
rabbitmq.deliveryMode = fanout

启动Canal

docker run -p 11111:11111 --name canal \
--restart always \
-v /etc/timezone:/etc/timezone:ro \
-v /etc/localtime:/etc/localtime:ro \
-v /opt/volume/canal/conf:/home/admin/canal-server/conf \
-d canal/canal-server

RabbitMQ 配置

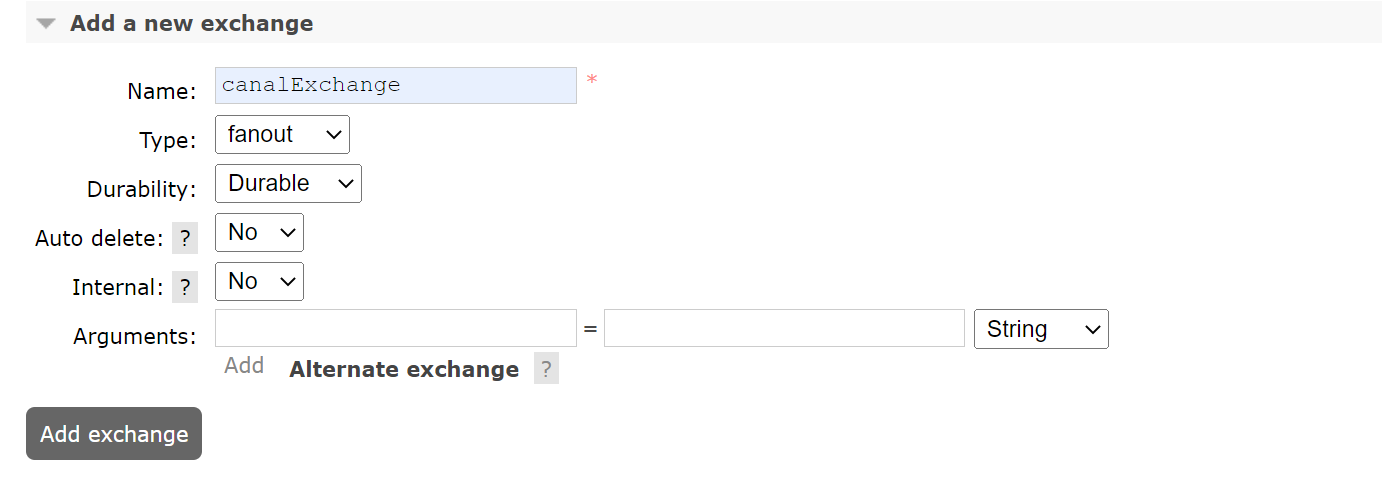

创建名为canalExchage的交换机

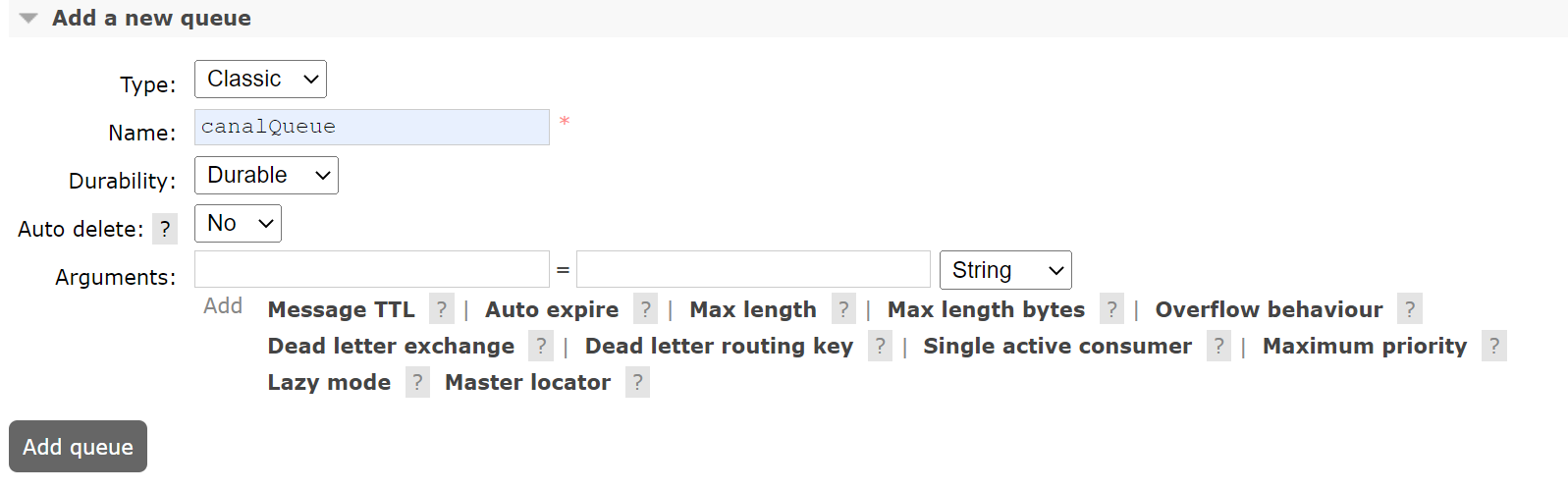

创建名为canalQueue的队列

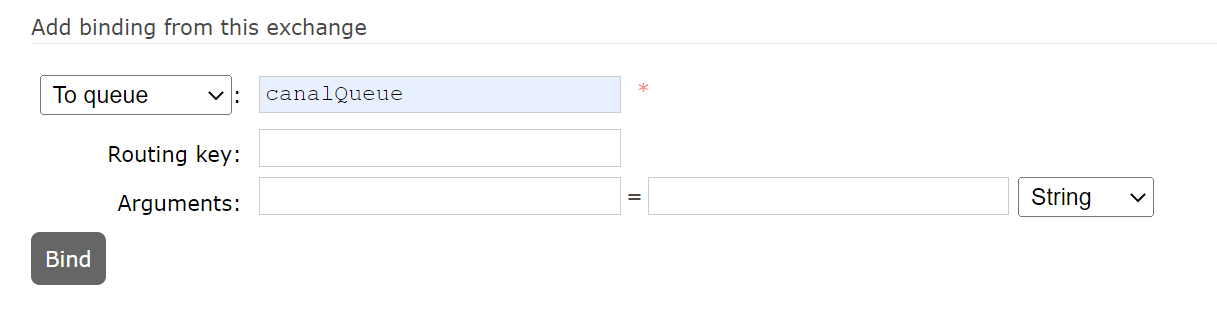

绑定交换机和队列

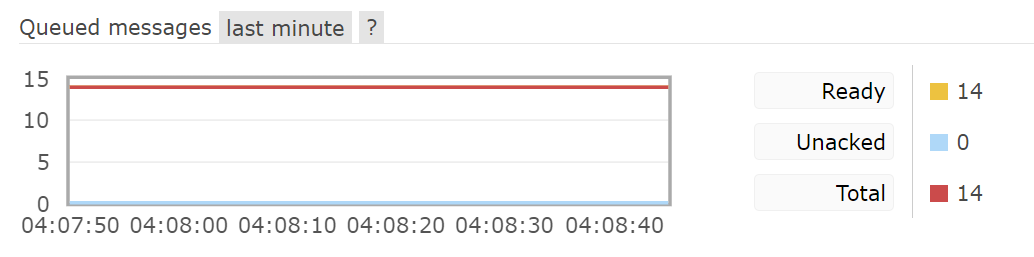

测试队列消息

在数据库里执行一些语句，查看对应队列已有新的消息

消费队列消息

Maven依赖

<dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-amqp</artifactId>
</dependency>

RabbitMQ配置

spring:
  rabbitmq:
    host: 192.168.88.141
    port: 5672
    username: root
    password: rabbitmqroot
    virtual-host: /
    listener:
      simple:
        acknowledge-mode: manual

消费队列消息，将数据同步到Elasticsearch

<dependency>
   <groupId>co.elastic.clients</groupId>
   <artifactId>elasticsearch-java</artifactId>
</dependency>

@Component
public class CanalMessageConsumer {

    private static final String MOVIES_INDEX_NAME = "movies";

    @SneakyThrows
    @RabbitListener(queues = "canalQueue")
    public void movieItemsConsumer(@Payload String message, @Header(value = AmqpHeaders.DELIVERY_TAG) long deliveryTag, Channel channel) {
        JSONObject jsonObject = JSON.parseObject(message);
        Boolean isDdl = jsonObject.getBoolean("isDdl");
        if(!isDdl) {
            String type = jsonObject.getString("type");
            if ("INSERT".equals(type) || "UPDATE".equals(type)) {
                RestClient restClient = RestClient.builder(new HttpHost("192.168.88.161", 9200)).build();
                ObjectMapper objectMapper = new ObjectMapper();
                objectMapper.setPropertyNamingStrategy(PropertyNamingStrategies.SNAKE_CASE);
                objectMapper.setSerializationInclusion(JsonInclude.Include.NON_NULL);
                ElasticsearchTransport elasticsearchTransport = new RestClientTransport(restClient,
                    new JacksonJsonpMapper(objectMapper));
                ElasticsearchClient elasticsearchClient = new ElasticsearchClient(elasticsearchTransport);

                String table = jsonObject.getString("table");
                if ("t_movie".equals(table)) {
                    JSONArray dataArray = jsonObject.getJSONArray("data");
                    for (int i = 0; i < dataArray.size(); i++) {
                        Movie movie = dataArray.getObject(i, Movie.class);
                        Integer id = movie.getId();
                        SearchResponse<Movie> searchResponse = elasticsearchClient
                            .search(builder -> builder.index(MOVIES_INDEX_NAME)
                                .query(queryBuilder -> queryBuilder
                                    .constantScore(constantScoreQueryBuilder -> constantScoreQueryBuilder
                                        .filter(filterQueryBuilder -> filterQueryBuilder
                                            .term(termQueryBuilder -> termQueryBuilder
                                                .field("id").value(id))))), Movie.class);
                        HitsMetadata<Movie> hits = searchResponse.hits();
                        TotalHits totalHits = hits.total();
                        long value = 0;
                        if (totalHits != null) {
                            value = totalHits.value();
                        }
                        if (value == 0) {
                            Snowflake snowflake = IdUtil.getSnowflake();
                            elasticsearchClient.create(builder -> builder
                                .index(MOVIES_INDEX_NAME).id(snowflake.nextIdStr()).document(movie));
                        } else {
                            List<Hit<Movie>> hitList = hits.hits();
                            for(Hit<Movie> hit: hitList) {
                                Movie source = hit.source();
                                if (source != null) {
                                    movie.setCelebrityId(source.getCelebrityId());
                                    movie.setCelebrityName(source.getCelebrityName());
                                    movie.setMovieCelebrityType(source.getMovieCelebrityType());
                                    movie.setCelebrityChineseName(source.getCelebrityChineseName());
                                    String hitId = hit.id();
                                    elasticsearchClient.update(builder -> builder
                                        .index(MOVIES_INDEX_NAME).id(hitId).doc(movie), Movie.class);
                                }
                            }
                        }
                    }
                }
                elasticsearchClient.shutdown();
            }
        }
        channel.basicAck(deliveryTag, true);
    }
}
