本文源码基于JDK8

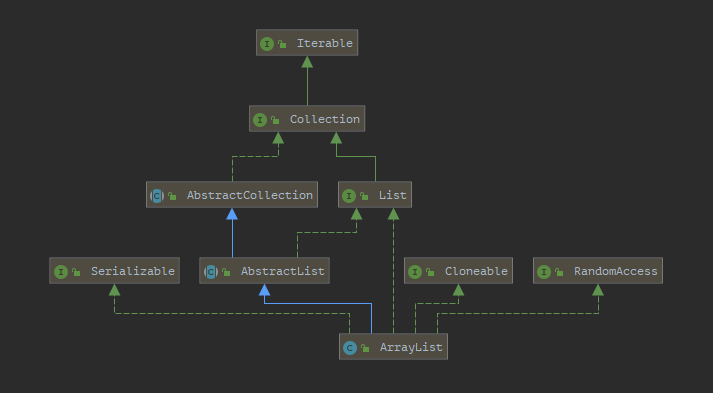

ArrayList类继承关系
Iterator接口
public interface Iterator<E> {
// 检测是否还有下一个元素
boolean hasNext();
// 返回下一个元素
E next();
// 将上一次next方法返回的元素删除
default void remove() {
// 抛出异常
throw new UnsupportedOperationException("remove");
}
// 对剩余的所有元素调用Consumer
default void forEachRemaining(Consumer<? super E> action) {
Objects.requireNonNull(action);
while (hasNext())
action.accept(next());
}
}
Iterable接口
public interface Iterable<T> {
// 返回一个用于遍历容器的Iterator
Iterator<T> iterator();
// 直接遍历容器，接口默认实现，对每个元素调用action
default void forEach(Consumer<? super T> action) {
Objects.requireNonNull(action);
for (T t : this) {
action.accept(t);
}
}
// 返回一个用于并行遍历容器的Spliterator
default Spliterator<T> spliterator() {
return Spliterators.spliteratorUnknownSize(iterator(), 0);
}
}
Collection接口
public interface Collection<E> extends Iterable<E> {
// 查询操作
// 返回容器元素数量
int size();
// 判断容器是否为空
boolean isEmpty();
// 判断容器是否包含某元素
boolean contains(Object o);
// 重复定义Iterable接口方法
// 返回一个用于遍历容器的Iterator
Iterator<E> iterator();
// 容器转换为数组
Object[] toArray();
<T> T[] toArray(T[] a);
// 修改操作
// 增加一个元素
boolean add(E e);
// 删除一个元素
boolean remove(Object o);
// 批量操作
// 判断是否包含另一个容器的所有元素
boolean containsAll(Collection<?> c);
// 加入另一个容器的所有元素
boolean addAll(Collection<? extends E> c);
// 删除另一个容器存在的所有元素
boolean removeAll(Collection<?> c);
// 删除符合条件的元素
default boolean removeIf(Predicate<? super E> filter) {
Objects.requireNonNull(filter);
boolean removed = false;
final Iterator<E> each = iterator();
while (each.hasNext()) {
if (filter.test(each.next())) {
each.remove();
removed = true;
}
}
return removed;
}
// 保留另一个容器存在的所有元素
boolean retainAll(Collection<?> c);
// 清除容器所有元素
void clear();
// 比较和哈希
// 判断两个容器是否相等
boolean equals(Object o);
// 计算哈希值
int hashCode();
// 返回一个用于并行遍历容器的Spliterator，重写了Iterable接口的默认实现
@Override
default Spliterator<E> spliterator() {
return Spliterators.spliterator(this, 0);
}
// 容器流处理
default Stream<E> stream() {
return StreamSupport.stream(spliterator(), false);
}
// 容器并行流处理
default Stream<E> parallelStream() {
return StreamSupport.stream(spliterator(), true);
}
AbstractCollection抽象类
public abstract class AbstractCollection<E> implements Collection<E> {
// 构造方法，仅供子类调用
protected AbstractCollection() {
}
// 重复定义Collection接口的iterator方法
public abstract Iterator<E> iterator();
// 重复定义Collection接口的size方法
public abstract int size();
public boolean isEmpty() {
// 容器元素个数为0，判断为空，否则不为空
return size() == 0;
}
public boolean contains(Object o) {
// 使用iterator遍历所有元素
Iterator<E> it = iterator();
if (o==null) {
// null与null比较
while (it.hasNext())
if (it.next()==null)
return true;
} else {
// 非null则使用equals方法判断是否相等
while (it.hasNext())
if (o.equals(it.next()))
return true;
}
return false;
}
public Object[] toArray() {
// 使用size方法估计需要的数组长度。并发修改的情况下，可能这并非最终的数组长度
Object[] r = new Object[size()];
Iterator<E> it = iterator();
for (int i = 0; i < r.length; i++) {
if (! it.hasNext())
// 比原估计长度小
return Arrays.copyOf(r, i);
r[i] = it.next();
}
// 比原估计长度大，需要再调用finishToArray方法
return it.hasNext() ? finishToArray(r, it) : r;
}
@SuppressWarnings("unchecked")
public <T> T[] toArray(T[] a) {
// 使用size方法估计需要的数组长度。并发修改的情况下，可能这并非最终的数组长度
int size = size();
// 传入参数提供的数组足够长度足够，则直接使用。否则根据提供的数组元素类型，按size方法的长度生成新的数组
T[] r = a.length >= size ? a :
(T[])java.lang.reflect.Array
.newInstance(a.getClass().getComponentType(), size);
Iterator<E> it = iterator();
for (int i = 0; i < r.length; i++) {
if (! it.hasNext()) {
// 比原估计长度小
if (a == r) {
// 使用的是传入参数的数组，后面补null
r[i] = null;
} else if (a.length < i) {
// 假如传入参数提供的数组现在长度还是不够，则复制一个当前长度的数组
return Arrays.copyOf(r, i);
} else {
// 假如传入参数提供的数组现在长度足够，使用回这个数组，把元素复制过去
System.arraycopy(r, 0, a, 0, i);
// 后面补null
if (a.length > i) {
a[i] = null;
}
}
return a;
}
// 强制转型
r[i] = (T)it.next();
}
// 比原估计长度大，需要再调用finishToArray方法
return it.hasNext() ? finishToArray(r, it) : r;
}
// 最大数组大小。Java数组length属性类型是int
private static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;
@SuppressWarnings("unchecked")
private static <T> T[] finishToArray(T[] r, Iterator<?> it) {
// 将iterator未复制完的元素继续复制到数组中
// 数组r已满，下一个要处理的数组index为r.length
int i = r.length;
while (it.hasNext()) {
// 设置cap值，用于检测当前index是否已超出数组边界
int cap = r.length;
if (i == cap) {
// 当前处理的index超出数组边界，则扩容
int newCap = cap + (cap >> 1) + 1;
// 扩容后长度大于数组最大安全长度的处理，调用hugeCapacity方法
if (newCap - MAX_ARRAY_SIZE > 0)
newCap = hugeCapacity(cap + 1);
r = Arrays.copyOf(r, newCap);
}
r[i++] = (T)it.next();
}
// 复制完后如数组有未使用的空间，将其缩减
return (i == r.length) ? r : Arrays.copyOf(r, i);
}
private static int hugeCapacity(int minCapacity) {
// 最小扩容，只把长度加1
// 长度为负数则表示长度已大于最大int，抛出错误
if (minCapacity < 0)
throw new OutOfMemoryError
("Required array size too large");
// 长度比数组最大长度大，则扩容到最大int，否则扩容到数组最大长度
return (minCapacity > MAX_ARRAY_SIZE) ?
Integer.MAX_VALUE :
MAX_ARRAY_SIZE;
}
// 修改操作
public boolean add(E e) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public boolean remove(Object o) {
// 使用iterator方法返回的iterator遍历容器
Iterator<E> it = iterator();
if (o==null) {
while (it.hasNext()) {
if (it.next()==null) {
// 通过iterator的remove方法删除相应的元素
it.remove();
return true;
}
}
} else {
while (it.hasNext()) {
if (o.equals(it.next())) {
// 通过iterator的remove方法删除相应的元素
it.remove();
return true;
}
}
}
return false;
}
// 批处理操作
public boolean containsAll(Collection<?> c) {
// 对传入参数的容器各元素调用contains方法
for (Object e : c)
if (!contains(e))
return false;
return true;
}
public boolean addAll(Collection<? extends E> c) {
boolean modified = false;
// 将传入参数的容器元素逐一加入
for (E e : c)
if (add(e))
modified = true;
return modified;
}
public boolean removeAll(Collection<?> c) {
Objects.requireNonNull(c);
boolean modified = false;
Iterator<?> it = iterator();
while (it.hasNext()) {
if (c.contains(it.next())) {
// 通过iterator的remove方法删除相应的元素
it.remove();
modified = true;
}
}
return modified;
}
public boolean retainAll(Collection<?> c) {
Objects.requireNonNull(c);
boolean modified = false;
Iterator<E> it = iterator();
while (it.hasNext()) {
// 与removeAll方法相反
if (!c.contains(it.next())) {
it.remove();
modified = true;
}
}
return modified;
}
public void clear() {
Iterator<E> it = iterator();
while (it.hasNext()) {
it.next();
it.remove();
}
}
// 字符串转换
public String toString() {
Iterator<E> it = iterator();
if (! it.hasNext())
return "[]";
StringBuilder sb = new StringBuilder();
sb.append('[');
for (;;) {
E e = it.next();
// 防止无限递归
sb.append(e == this ? "(this Collection)" : e);
if (! it.hasNext())
return sb.append(']').toString();
sb.append(',').append(' ');
}
}
}
ListIterator接口
public interface ListIterator<E> extends Iterator<E> {
// 检测是否有下一个元素
boolean hasNext();
// 返回下一个元素
E next();
// 检测是否有上一个元素
boolean hasPrevious();
// 返回上一个元素
E previous();
// 返回下一个元素的index
int nextIndex();
// 返回上一个元素的index
int previousIndex();
// 删除上一次调用next或previous方法返回的元素，且调用remove之前不能有调用过add
void remove();
// 替换上一次调用next或previous方法返回的元素，且调用set之前不能有调用add或remove
void set(E e);
// 在当前游标前面增加元素
void add(E e);
}
List接口
public interface List<E> extends Collection<E> {
// 重复定义Collection接口方法
int size();
boolean isEmpty();
boolean contains(Object o);
Iterator<E> iterator();
Object[] toArray();
<T> T[] toArray(T[] a);
boolean add(E e);
boolean remove(Object o);
boolean containsAll(Collection<?> c);
boolean addAll(Collection<? extends E> c);
boolean removeAll(Collection<?> c);
boolean retainAll(Collection<?> c);
void clear();
boolean equals(Object o);
int hashCode();
// 重载Collection接口的addAll方法
// 将c容器内的所有元素从List的index位置开始插入
boolean addAll(int index, Collection<? extends E> c);
// 对List每个元素进行替换操作
default void replaceAll(UnaryOperator<E> operator) {
Objects.requireNonNull(operator);
final ListIterator<E> li = this.listIterator();
// 遍历容器所有元素
while (li.hasNext()) {
// 对每个元素施加操作，并将操作后的对象替换到List的原位置
li.set(operator.apply(li.next()));
}
}
// 排序
@SuppressWarnings({"unchecked", "rawtypes"})
default void sort(Comparator<? super E> c) {
// 转数组并依据Comparator排序
Object[] a = this.toArray();
Arrays.sort(a, (Comparator) c);
ListIterator<E> i = this.listIterator();
// 将数组内的元素按顺序放回List
for (Object e : a) {
i.next();
i.set((E) e);
}
}
// 返回相应位置的元素
E get(int index);
// 替换相应位置的元素
E set(int index, E element);
// 在相应位置插入元素
void add(int index, E element);
// 删除相应位置的元素
E remove(int index);
// 返回第一次出现的索引值
int indexOf(Object o);
// 返回最后一次出现的索引值
int lastIndexOf(Object o);
// 返回ListIterator
ListIterator<E> listIterator();
// 返回ListIterator，开始位置为index
ListIterator<E> listIterator(int index);
// 返回子List，index范围包前不包后。子List依赖原List，数据改变会相互影响
List<E> subList(int fromIndex, int toIndex);
// 返回一个用于并行遍历容器的Spliterator，重写了Collection接口的默认实现
@Override
default Spliterator<E> spliterator() {
return Spliterators.spliterator(this, Spliterator.ORDERED);
}
}
RandomAccess接口
// 标记式接口，支持随机访问
public interface RandomAccess {
}
AbstractList抽象类
public abstract class AbstractList<E> extends AbstractCollection<E> implements List<E> {
// 构造方法，仅供子类调用
protected AbstractList() {
}
public boolean add(E e) {
// 调用重载方法，新增元素放在尾部
add(size(), e);
return true;
}
// 重复定义List接口的get方法
abstract public E get(int index);
public E set(int index, E element) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public void add(int index, E element) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public E remove(int index) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public int indexOf(Object o) {
// 使用ListIterator遍历容器，找到元素则返回index
ListIterator<E> it = listIterator();
if (o==null) {
while (it.hasNext())
if (it.next()==null)
return it.previousIndex();
} else {
while (it.hasNext())
if (o.equals(it.next()))
return it.previousIndex();
}
return -1;
}
public int lastIndexOf(Object o) {
// 使用ListIterator反向遍历容器，找到元素则返回index
ListIterator<E> it = listIterator(size());
if (o==null) {
while (it.hasPrevious())
if (it.previous()==null)
return it.nextIndex();
} else {
while (it.hasPrevious())
if (o.equals(it.previous()))
return it.nextIndex();
}
return -1;
}
// 重写了AbstractCollection的实现
public void clear() {
removeRange(0, size());
}
public boolean addAll(int index, Collection<? extends E> c) {
rangeCheckForAdd(index);
boolean modified = false;
for (E e : c) {
// 从index位置逐一添加元素
add(index++, e);
modified = true;
}
return modified;
}
// 返回Iterator
public Iterator<E> iterator() {
return new Itr();
}
// 返回起始位置为0的ListIterator
public ListIterator<E> listIterator() {
return listIterator(0);
}
// 返回起始位置为index的ListIterator
public ListIterator<E> listIterator(final int index) {
rangeCheckForAdd(index);
return new ListItr(index);
}
// 实现Iterator接口的内部类
private class Itr implements Iterator<E> {
// 下一次调用next要返回的元素index
int cursor = 0;
// 最近一次调用next或previous返回的元素的index，调用remove后将重置为-1
int lastRet = -1;
// Iterator期望List的modCount值，假如与真实modCount值不相等，则认为有并发修改
int expectedModCount = modCount;
public boolean hasNext() {
// cursor值不等于size()，则认为有下个元素
return cursor != size();
}
public E next() {
checkForComodification();
try {
int i = cursor;
// 获取游标所指的元素
E next = get(i);
lastRet = i;
// 游标向后移动
cursor = i + 1;
return next;
} catch (IndexOutOfBoundsException e) {
checkForComodification();
throw new NoSuchElementException();
}
}
public void remove() {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
// 调用List的remove方法删除元素
AbstractList.this.remove(lastRet);
if (lastRet < cursor)
// 如remove之前调用的是next，lastRet == cursor - 1，调整游标
// 如remove之前调用的是previous，此时lastRet == cursor，不调整游标
cursor--;
lastRet = -1;
// List的modCount应该已改变，需要刷新expectedModCount
expectedModCount = modCount;
} catch (IndexOutOfBoundsException e) {
throw new ConcurrentModificationException();
}
}
// 检查并发修改
final void checkForComodification() {
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
}
}
// 实现ListIterator接口的内部类，继承了Itr类
private class ListItr extends Itr implements ListIterator<E> {
// 构造方法指定游标位置
ListItr(int index) {
cursor = index;
}
public boolean hasPrevious() {
// 游标不为0，则认为存在前一个元素
return cursor != 0;
}
public E previous() {
checkForComodification();
try {
int i = cursor - 1;
// 获取游标的前一个元素
E previous = get(i);
// 游标向前移动
lastRet = cursor = i;
return previous;
} catch (IndexOutOfBoundsException e) {
checkForComodification();
throw new NoSuchElementException();
}
}
public int nextIndex() {
return cursor;
}
public int previousIndex() {
return cursor-1;
}
public void set(E e) {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
// 调用List的set方法替换元素
AbstractList.this.set(lastRet, e);
// List的modCount应该已改变，需要刷新expectedModCount
expectedModCount = modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
public void add(E e) {
checkForComodification();
try {
int i = cursor;
// 调用List的add方法增加元素
AbstractList.this.add(i, e);
lastRet = -1;
// 相当于在游标前插入，不影响next的遍历
cursor = i + 1;
// List的modCount应该已改变，需要刷新expectedModCount
expectedModCount = modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
}
public List<E> subList(int fromIndex, int toIndex) {
// 根据当前List是否实现RamdonAccess确定子List的类型
return (this instanceof RandomAccess ?
new RandomAccessSubList<>(this, fromIndex, toIndex) :
new SubList<>(this, fromIndex, toIndex));
}
// 都是List，长度相等，相同位置的元素相等，判断为相等
public boolean equals(Object o) {
if (o == this)
return true;
if (!(o instanceof List))
return false;
ListIterator<E> e1 = listIterator();
ListIterator<?> e2 = ((List<?>) o).listIterator();
while (e1.hasNext() && e2.hasNext()) {
E o1 = e1.next();
Object o2 = e2.next();
if (!(o1==null ? o2==null : o1.equals(o2)))
return false;
}
return !(e1.hasNext() || e2.hasNext());
}
public int hashCode() {
int hashCode = 1;
for (E e : this)
hashCode = 31*hashCode + (e==null ? 0 : e.hashCode());
return hashCode;
}
// 范围删除元素，index包前不包后
protected void removeRange(int fromIndex, int toIndex) {
ListIterator<E> it = listIterator(fromIndex);
// 从fromIndex开始删除，删除toIndex-fromIndex个元素
for (int i=0, n=toIndex-fromIndex; i<n; i++) {
it.next();
it.remove();
}
}
// List结构性改变次数标记
protected transient int modCount = 0;
// 检查index值是否超出添加元素范围，size()值合法
private void rangeCheckForAdd(int index) {
if (index < 0 || index > size())
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private String outOfBoundsMsg(int index) {
return "Index: "+index+", Size: "+size();
}
}
// 子List，依赖原List实现功能，并作范围限制
class SubList<E> extends AbstractList<E> {
private final AbstractList<E> l;
private final int offset;
private int size;
SubList(AbstractList<E> list, int fromIndex, int toIndex) {
if (fromIndex < 0)
throw new IndexOutOfBoundsException("fromIndex = " + fromIndex);
if (toIndex > list.size())
throw new IndexOutOfBoundsException("toIndex = " + toIndex);
if (fromIndex > toIndex)
throw new IllegalArgumentException("fromIndex(" + fromIndex +
") > toIndex(" + toIndex + ")");
l = list;
offset = fromIndex;
size = toIndex - fromIndex;
this.modCount = l.modCount;
}
public E set(int index, E element) {
rangeCheck(index);
checkForComodification();
return l.set(index+offset, element);
}
public E get(int index) {
rangeCheck(index);
checkForComodification();
return l.get(index+offset);
}
public int size() {
checkForComodification();
return size;
}
public void add(int index, E element) {
rangeCheckForAdd(index);
checkForComodification();
l.add(index+offset, element);
this.modCount = l.modCount;
size++;
}
public E remove(int index) {
rangeCheck(index);
checkForComodification();
E result = l.remove(index+offset);
this.modCount = l.modCount;
size--;
return result;
}
protected void removeRange(int fromIndex, int toIndex) {
checkForComodification();
l.removeRange(fromIndex+offset, toIndex+offset);
this.modCount = l.modCount;
size -= (toIndex-fromIndex);
}
public boolean addAll(Collection<? extends E> c) {
return addAll(size, c);
}
public boolean addAll(int index, Collection<? extends E> c) {
rangeCheckForAdd(index);
int cSize = c.size();
if (cSize==0)
return false;
checkForComodification();
l.addAll(offset+index, c);
this.modCount = l.modCount;
size += cSize;
return true;
}
public Iterator<E> iterator() {
return listIterator();
}
public ListIterator<E> listIterator(final int index) {
checkForComodification();
rangeCheckForAdd(index);
return new ListIterator<E>() {
private final ListIterator<E> i = l.listIterator(index+offset);
public boolean hasNext() {
return nextIndex() < size;
}
public E next() {
if (hasNext())
return i.next();
else
throw new NoSuchElementException();
}
public boolean hasPrevious() {
return previousIndex() >= 0;
}
public E previous() {
if (hasPrevious())
return i.previous();
else
throw new NoSuchElementException();
}
public int nextIndex() {
return i.nextIndex() - offset;
}
public int previousIndex() {
return i.previousIndex() - offset;
}
public void remove() {
i.remove();
SubList.this.modCount = l.modCount;
size--;
}
public void set(E e) {
i.set(e);
}
public void add(E e) {
i.add(e);
SubList.this.modCount = l.modCount;
size++;
}
};
}
public List<E> subList(int fromIndex, int toIndex) {
return new SubList<>(this, fromIndex, toIndex);
}
private void rangeCheck(int index) {
if (index < 0 || index >= size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private void rangeCheckForAdd(int index) {
if (index < 0 || index > size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private String outOfBoundsMsg(int index) {
return "Index: "+index+", Size: "+size;
}
private void checkForComodification() {
if (this.modCount != l.modCount)
throw new ConcurrentModificationException();
}
}
// 相比SubList，多实现了RandomAccess接口
class RandomAccessSubList<E> extends SubList<E> implements RandomAccess {
RandomAccessSubList(AbstractList<E> list, int fromIndex, int toIndex) {
super(list, fromIndex, toIndex);
}
public List<E> subList(int fromIndex, int toIndex) {
return new RandomAccessSubList<>(this, fromIndex, toIndex);
}
}
ArrayList
public class ArrayList<E> extends AbstractList<E>
implements List<E>, RandomAccess, Cloneable, java.io.Serializable
{
private static final long serialVersionUID = 8683452581122892189L;
// 初始容量
private static final int DEFAULT_CAPACITY = 10;
// 显式指定长度为0，使用此共享空数组
private static final Object[] EMPTY_ELEMENTDATA = {};
// 使用默认长度，在未加入元素时，暂时使用此共享空数组
private static final Object[] DEFAULTCAPACITY_EMPTY_ELEMENTDATA = {};
// 真实元素内容存放的地方
transient Object[] elementData;
// ArrayList元素个数
private int size;
public ArrayList(int initialCapacity) {
if (initialCapacity > 0) {
// 按初始容量构造elementData对象数据
this.elementData = new Object[initialCapacity];
} else if (initialCapacity == 0) {
// 显示指定长度为0，使用共享空数组EMPTY_ELEMENTDATA
this.elementData = EMPTY_ELEMENTDATA;
} else {
throw new IllegalArgumentException("Illegal Capacity: "+
initialCapacity);
}
}
public ArrayList() {
// 不指定长度，则使用共享空数组DEFAULTCAPACITY_EMPTY_ELEMENTDATA，这个空数组将在加入第一个元素时按默认长度扩展
this.elementData = DEFAULTCAPACITY_EMPTY_ELEMENTDATA;
}
public ArrayList(Collection<? extends E> c) {
Object[] a = c.toArray();
if ((size = a.length) != 0) {
if (c.getClass() == ArrayList.class) {
// 参数c是ArrayList类型，直接使用toArray转换出来的数组
elementData = a;
} else {
// 参数c不是ArrayList类型，再复制一次数组
elementData = Arrays.copyOf(a, size, Object[].class);
}
} else {
// 没有元素，使用共享空数组
elementData = EMPTY_ELEMENTDATA;
}
}
// 缩减elementData多余空间
public void trimToSize() {
modCount++;
if (size < elementData.length) {
elementData = (size == 0)
? EMPTY_ELEMENTDATA
: Arrays.copyOf(elementData, size);
}
}
public void ensureCapacity(int minCapacity) {
// 假如elementData是DEFAULTCAPACITY_EMPTY_ELEMENTDATA空数组，则至少扩容到DEFAULT_CAPACITY
// minCapacity小于或等于DEFAULT_CAPACITY无需预先扩容
int minExpand = (elementData != DEFAULTCAPACITY_EMPTY_ELEMENTDATA)
? 0
: DEFAULT_CAPACITY;
if (minCapacity > minExpand) {
ensureExplicitCapacity(minCapacity);
}
}
private static int calculateCapacity(Object[] elementData, int minCapacity) {
// 假如elementData是DEFAULTCAPACITY_EMPTY_ELEMENTDATA空数组，则至少扩容到DEFAULT_CAPACITY
if (elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA) {
return Math.max(DEFAULT_CAPACITY, minCapacity);
}
return minCapacity;
}
private void ensureCapacityInternal(int minCapacity) {
ensureExplicitCapacity(calculateCapacity(elementData, minCapacity));
}
private void ensureExplicitCapacity(int minCapacity) {
modCount++;
// 当前要求的最小容量比elementData长度要大，需要扩容
if (minCapacity - elementData.length > 0)
grow(minCapacity);
}
// 数组元素长度安全的最大长度
private static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;
// 扩充elementData
private void grow(int minCapacity) {
int oldCapacity = elementData.length;
// 常规扩充方法
int newCapacity = oldCapacity + (oldCapacity >> 1);
if (newCapacity - minCapacity < 0)
// 还不够的话按要求的最小量来扩充
newCapacity = minCapacity;
if (newCapacity - MAX_ARRAY_SIZE > 0)
newCapacity = hugeCapacity(minCapacity);
elementData = Arrays.copyOf(elementData, newCapacity);
}
private static int hugeCapacity(int minCapacity) {
if (minCapacity < 0) // overflow
throw new OutOfMemoryError();
return (minCapacity > MAX_ARRAY_SIZE) ?
Integer.MAX_VALUE :
MAX_ARRAY_SIZE;
}
public int size() {
return size;
}
public boolean isEmpty() {
return size == 0;
}
public boolean contains(Object o) {
return indexOf(o) >= 0;
}
public int indexOf(Object o) {
if (o == null) {
for (int i = 0; i < size; i++)
if (elementData[i]==null)
return i;
} else {
for (int i = 0; i < size; i++)
if (o.equals(elementData[i]))
return i;
}
return -1;
}
public int lastIndexOf(Object o) {
if (o == null) {
for (int i = size-1; i >= 0; i--)
if (elementData[i]==null)
return i;
} else {
for (int i = size-1; i >= 0; i--)
if (o.equals(elementData[i]))
return i;
}
return -1;
}
public Object clone() {
try {
ArrayList<?> v = (ArrayList<?>) super.clone();
v.elementData = Arrays.copyOf(elementData, size);
v.modCount = 0;
return v;
} catch (CloneNotSupportedException e) {
throw new InternalError(e);
}
}
public Object[] toArray() {
return Arrays.copyOf(elementData, size);
}
@SuppressWarnings("unchecked")
public <T> T[] toArray(T[] a) {
if (a.length < size)
return (T[]) Arrays.copyOf(elementData, size, a.getClass());
System.arraycopy(elementData, 0, a, 0, size);
if (a.length > size)
a[size] = null;
return a;
}
@SuppressWarnings("unchecked")
E elementData(int index) {
// 直接通过数组访问需要的元素
return (E) elementData[index];
}
public E get(int index) {
rangeCheck(index);
return elementData(index);
}
public E set(int index, E element) {
rangeCheck(index);
E oldValue = elementData(index);
elementData[index] = element;
return oldValue;
}
public boolean add(E e) {
ensureCapacityInternal(size + 1);
elementData[size++] = e;
return true;
}
public void add(int index, E element) {
rangeCheckForAdd(index);
ensureCapacityInternal(size + 1);
// 插入的目标位置后面的所有元素全部向后移动一个位置
System.arraycopy(elementData, index, elementData, index + 1,
size - index);
elementData[index] = element;
size++;
}
public E remove(int index) {
rangeCheck(index);
modCount++;
E oldValue = elementData(index);
// 删除操作实际需要移动的元素个数
int numMoved = size - index - 1;
if (numMoved > 0)
System.arraycopy(elementData, index+1, elementData, index,
numMoved);
elementData[--size] = null;
return oldValue;
}
public boolean remove(Object o) {
if (o == null) {
for (int index = 0; index < size; index++)
if (elementData[index] == null) {
fastRemove(index);
return true;
}
} else {
for (int index = 0; index < size; index++)
if (o.equals(elementData[index])) {
fastRemove(index);
return true;
}
}
return false;
}
// 内部快速删除元素方法，不检查index是否越界，不返回删除的元素值
private void fastRemove(int index) {
modCount++;
int numMoved = size - index - 1;
if (numMoved > 0)
System.arraycopy(elementData, index+1, elementData, index,
numMoved);
elementData[--size] = null;
}
public void clear() {
modCount++;
for (int i = 0; i < size; i++)
elementData[i] = null;
size = 0;
}
public boolean addAll(Collection<? extends E> c) {
Object[] a = c.toArray();
int numNew = a.length;
// 确保长度足够，把需要增加的所有元素附加到elementData尾部
ensureCapacityInternal(size + numNew);
System.arraycopy(a, 0, elementData, size, numNew);
size += numNew;
return numNew != 0;
}
public boolean addAll(int index, Collection<? extends E> c) {
rangeCheckForAdd(index);
Object[] a = c.toArray();
int numNew = a.length;
ensureCapacityInternal(size + numNew);
int numMoved = size - index;
if (numMoved > 0)
System.arraycopy(elementData, index, elementData, index + numNew,
numMoved);
System.arraycopy(a, 0, elementData, index, numNew);
size += numNew;
return numNew != 0;
}
protected void removeRange(int fromIndex, int toIndex) {
modCount++;
int numMoved = size - toIndex;
System.arraycopy(elementData, toIndex, elementData, fromIndex,
numMoved);
int newSize = size - (toIndex-fromIndex);
for (int i = newSize; i < size; i++) {
elementData[i] = null;
}
size = newSize;
}
private void rangeCheck(int index) {
if (index >= size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private void rangeCheckForAdd(int index) {
if (index > size || index < 0)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private String outOfBoundsMsg(int index) {
return "Index: "+index+", Size: "+size;
}
public boolean removeAll(Collection<?> c) {
Objects.requireNonNull(c);
return batchRemove(c, false);
}
public boolean retainAll(Collection<?> c) {
Objects.requireNonNull(c);
return batchRemove(c, true);
}
private boolean batchRemove(Collection<?> c, boolean complement) {
final Object[] elementData = this.elementData;
int r = 0, w = 0;
boolean modified = false;
try {
for (; r < size; r++)
if (c.contains(elementData[r]) == complement)
elementData[w++] = elementData[r];
} finally {
if (r != size) {
// 假如抛异常，即elementData未遍历完成，将当前正在遍历的和未遍历的元素全部当作保留下来处理
System.arraycopy(elementData, r,
elementData, w,
size - r);
w += size - r;
}
if (w != size) {
for (int i = w; i < size; i++)
elementData[i] = null;
// 删元素的次数加到modCount
modCount += size - w;
size = w;
modified = true;
}
}
return modified;
}
private void writeObject(java.io.ObjectOutputStream s)
throws java.io.IOException{
int expectedModCount = modCount;
s.defaultWriteObject();
s.writeInt(size);
for (int i=0; i<size; i++) {
s.writeObject(elementData[i]);
}
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
}
private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
elementData = EMPTY_ELEMENTDATA;
s.defaultReadObject();
s.readInt();
if (size > 0) {
int capacity = calculateCapacity(elementData, size);
SharedSecrets.getJavaOISAccess().checkArray(s, Object[].class, capacity);
ensureCapacityInternal(size);
Object[] a = elementData;
for (int i=0; i<size; i++) {
a[i] = s.readObject();
}
}
}
public ListIterator<E> listIterator(int index) {
if (index < 0 || index > size)
throw new IndexOutOfBoundsException("Index: "+index);
return new ListItr(index);
}
public ListIterator<E> listIterator() {
return new ListItr(0);
}
public Iterator<E> iterator() {
return new Itr();
}
private class Itr implements Iterator<E> {
int cursor;
int lastRet = -1;
int expectedModCount = modCount;
Itr() {}
public boolean hasNext() {
return cursor != size;
}
@SuppressWarnings("unchecked")
public E next() {
checkForComodification();
int i = cursor;
if (i >= size)
throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length)
throw new ConcurrentModificationException();
cursor = i + 1;
return (E) elementData[lastRet = i];
}
public void remove() {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
ArrayList.this.remove(lastRet);
cursor = lastRet;
lastRet = -1;
expectedModCount = modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
@Override
@SuppressWarnings("unchecked")
public void forEachRemaining(Consumer<? super E> consumer) {
Objects.requireNonNull(consumer);
final int size = ArrayList.this.size;
int i = cursor;
if (i >= size) {
return;
}
final Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length) {
throw new ConcurrentModificationException();
}
while (i != size && modCount == expectedModCount) {
consumer.accept((E) elementData[i++]);
}
cursor = i;
lastRet = i - 1;
checkForComodification();
}
final void checkForComodification() {
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
}
}
private class ListItr extends Itr implements ListIterator<E> {
ListItr(int index) {
super();
cursor = index;
}
public boolean hasPrevious() {
return cursor != 0;
}
public int nextIndex() {
return cursor;
}
public int previousIndex() {
return cursor - 1;
}
@SuppressWarnings("unchecked")
public E previous() {
checkForComodification();
int i = cursor - 1;
if (i < 0)
throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length)
throw new ConcurrentModificationException();
cursor = i;
return (E) elementData[lastRet = i];
}
public void set(E e) {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
ArrayList.this.set(lastRet, e);
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
public void add(E e) {
checkForComodification();
try {
int i = cursor;
ArrayList.this.add(i, e);
cursor = i + 1;
lastRet = -1;
expectedModCount = modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
}
public List<E> subList(int fromIndex, int toIndex) {
subListRangeCheck(fromIndex, toIndex, size);
return new SubList(this, 0, fromIndex, toIndex);
}
static void subListRangeCheck(int fromIndex, int toIndex, int size) {
if (fromIndex < 0)
throw new IndexOutOfBoundsException("fromIndex = " + fromIndex);
if (toIndex > size)
throw new IndexOutOfBoundsException("toIndex = " + toIndex);
if (fromIndex > toIndex)
throw new IllegalArgumentException("fromIndex(" + fromIndex +
") > toIndex(" + toIndex + ")");
}
// 不同于AbstractList，这里SubList是个内部类
private class SubList extends AbstractList<E> implements RandomAccess {
private final AbstractList<E> parent;
private final int parentOffset;
private final int offset;
int size;
SubList(AbstractList<E> parent,
int offset, int fromIndex, int toIndex) {
this.parent = parent;
this.parentOffset = fromIndex;
this.offset = offset + fromIndex;
this.size = toIndex - fromIndex;
this.modCount = ArrayList.this.modCount;
}
public E set(int index, E e) {
rangeCheck(index);
checkForComodification();
E oldValue = ArrayList.this.elementData(offset + index);
ArrayList.this.elementData[offset + index] = e;
return oldValue;
}
public E get(int index) {
rangeCheck(index);
checkForComodification();
return ArrayList.this.elementData(offset + index);
}
public int size() {
checkForComodification();
return this.size;
}
public void add(int index, E e) {
rangeCheckForAdd(index);
checkForComodification();
parent.add(parentOffset + index, e);
this.modCount = parent.modCount;
this.size++;
}
public E remove(int index) {
rangeCheck(index);
checkForComodification();
E result = parent.remove(parentOffset + index);
this.modCount = parent.modCount;
this.size--;
return result;
}
protected void removeRange(int fromIndex, int toIndex) {
checkForComodification();
parent.removeRange(parentOffset + fromIndex,
parentOffset + toIndex);
this.modCount = parent.modCount;
this.size -= toIndex - fromIndex;
}
public boolean addAll(Collection<? extends E> c) {
return addAll(this.size, c);
}
public boolean addAll(int index, Collection<? extends E> c) {
rangeCheckForAdd(index);
int cSize = c.size();
if (cSize==0)
return false;
checkForComodification();
parent.addAll(parentOffset + index, c);
this.modCount = parent.modCount;
this.size += cSize;
return true;
}
public Iterator<E> iterator() {
return listIterator();
}
public ListIterator<E> listIterator(final int index) {
checkForComodification();
rangeCheckForAdd(index);
final int offset = this.offset;
return new ListIterator<E>() {
int cursor = index;
int lastRet = -1;
int expectedModCount = ArrayList.this.modCount;
public boolean hasNext() {
return cursor != SubList.this.size;
}
@SuppressWarnings("unchecked")
public E next() {
checkForComodification();
int i = cursor;
if (i >= SubList.this.size)
throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (offset + i >= elementData.length)
throw new ConcurrentModificationException();
cursor = i + 1;
return (E) elementData[offset + (lastRet = i)];
}
public boolean hasPrevious() {
return cursor != 0;
}
@SuppressWarnings("unchecked")
public E previous() {
checkForComodification();
int i = cursor - 1;
if (i < 0)
throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (offset + i >= elementData.length)
throw new ConcurrentModificationException();
cursor = i;
return (E) elementData[offset + (lastRet = i)];
}
@SuppressWarnings("unchecked")
public void forEachRemaining(Consumer<? super E> consumer) {
Objects.requireNonNull(consumer);
final int size = SubList.this.size;
int i = cursor;
if (i >= size) {
return;
}
final Object[] elementData = ArrayList.this.elementData;
if (offset + i >= elementData.length) {
throw new ConcurrentModificationException();
}
while (i != size && modCount == expectedModCount) {
consumer.accept((E) elementData[offset + (i++)]);
}
// update once at end of iteration to reduce heap write traffic
lastRet = cursor = i;
checkForComodification();
}
public int nextIndex() {
return cursor;
}
public int previousIndex() {
return cursor - 1;
}
public void remove() {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
SubList.this.remove(lastRet);
cursor = lastRet;
lastRet = -1;
expectedModCount = ArrayList.this.modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
public void set(E e) {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
ArrayList.this.set(offset + lastRet, e);
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
public void add(E e) {
checkForComodification();
try {
int i = cursor;
SubList.this.add(i, e);
cursor = i + 1;
lastRet = -1;
expectedModCount = ArrayList.this.modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
final void checkForComodification() {
if (expectedModCount != ArrayList.this.modCount)
throw new ConcurrentModificationException();
}
};
}
public List<E> subList(int fromIndex, int toIndex) {
subListRangeCheck(fromIndex, toIndex, size);
return new SubList(this, offset, fromIndex, toIndex);
}
private void rangeCheck(int index) {
if (index < 0 || index >= this.size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private void rangeCheckForAdd(int index) {
if (index < 0 || index > this.size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private String outOfBoundsMsg(int index) {
return "Index: "+index+", Size: "+this.size;
}
private void checkForComodification() {
if (ArrayList.this.modCount != this.modCount)
throw new ConcurrentModificationException();
}
public Spliterator<E> spliterator() {
checkForComodification();
return new ArrayListSpliterator<E>(ArrayList.this, offset,
offset + this.size, this.modCount);
}
}
@Override
public void forEach(Consumer<? super E> action) {
Objects.requireNonNull(action);
final int expectedModCount = modCount;
@SuppressWarnings("unchecked")
final E[] elementData = (E[]) this.elementData;
final int size = this.size;
for (int i=0; modCount == expectedModCount && i < size; i++) {
action.accept(elementData[i]);
}
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
}
// 重写了AbstractList的实现
@Override
public Spliterator<E> spliterator() {
return new ArrayListSpliterator<>(this, 0, -1, 0);
}
// 跳过Spliterator的分析
/** Index-based split-by-two, lazily initialized Spliterator */
static final class ArrayListSpliterator<E> implements Spliterator<E> {
/*
* If ArrayLists were immutable, or structurally immutable (no
* adds, removes, etc), we could implement their spliterators
* with Arrays.spliterator. Instead we detect as much
* interference during traversal as practical without
* sacrificing much performance. We rely primarily on
* modCounts. These are not guaranteed to detect concurrency
* violations, and are sometimes overly conservative about
* within-thread interference, but detect enough problems to
* be worthwhile in practice. To carry this out, we (1) lazily
* initialize fence and expectedModCount until the latest
* point that we need to commit to the state we are checking
* against; thus improving precision. (This doesn't apply to
* SubLists, that create spliterators with current non-lazy
* values). (2) We perform only a single
* ConcurrentModificationException check at the end of forEach
* (the most performance-sensitive method). When using forEach
* (as opposed to iterators), we can normally only detect
* interference after actions, not before. Further
* CME-triggering checks apply to all other possible
* violations of assumptions for example null or too-small
* elementData array given its size(), that could only have
* occurred due to interference. This allows the inner loop
* of forEach to run without any further checks, and
* simplifies lambda-resolution. While this does entail a
* number of checks, note that in the common case of
* list.stream().forEach(a), no checks or other computation
* occur anywhere other than inside forEach itself. The other
* less-often-used methods cannot take advantage of most of
* these streamlinings.
*/
private final ArrayList<E> list;
private int index; // current index, modified on advance/split
private int fence; // -1 until used; then one past last index
private int expectedModCount; // initialized when fence set
/** Create new spliterator covering the given range */
ArrayListSpliterator(ArrayList<E> list, int origin, int fence,
int expectedModCount) {
this.list = list; // OK if null unless traversed
this.index = origin;
this.fence = fence;
this.expectedModCount = expectedModCount;
}
private int getFence() { // initialize fence to size on first use
int hi; // (a specialized variant appears in method forEach)
ArrayList<E> lst;
if ((hi = fence) < 0) {
if ((lst = list) == null)
hi = fence = 0;
else {
expectedModCount = lst.modCount;
hi = fence = lst.size;
}
}
return hi;
}
public ArrayListSpliterator<E> trySplit() {
int hi = getFence(), lo = index, mid = (lo + hi) >>> 1;
return (lo >= mid) ? null : // divide range in half unless too small
new ArrayListSpliterator<E>(list, lo, index = mid,
expectedModCount);
}
public boolean tryAdvance(Consumer<? super E> action) {
if (action == null)
throw new NullPointerException();
int hi = getFence(), i = index;
if (i < hi) {
index = i + 1;
@SuppressWarnings("unchecked") E e = (E)list.elementData[i];
action.accept(e);
if (list.modCount != expectedModCount)
throw new ConcurrentModificationException();
return true;
}
return false;
}
public void forEachRemaining(Consumer<? super E> action) {
int i, hi, mc; // hoist accesses and checks from loop
ArrayList<E> lst; Object[] a;
if (action == null)
throw new NullPointerException();
if ((lst = list) != null && (a = lst.elementData) != null) {
if ((hi = fence) < 0) {
mc = lst.modCount;
hi = lst.size;
}
else
mc = expectedModCount;
if ((i = index) >= 0 && (index = hi) <= a.length) {
for (; i < hi; ++i) {
@SuppressWarnings("unchecked") E e = (E) a[i];
action.accept(e);
}
if (lst.modCount == mc)
return;
}
}
throw new ConcurrentModificationException();
}
public long estimateSize() {
return (long) (getFence() - index);
}
public int characteristics() {
return Spliterator.ORDERED | Spliterator.SIZED | Spliterator.SUBSIZED;
}
}
@Override
public boolean removeIf(Predicate<? super E> filter) {
Objects.requireNonNull(filter);
int removeCount = 0;
final BitSet removeSet = new BitSet(size);
final int expectedModCount = modCount;
final int size = this.size;
for (int i=0; modCount == expectedModCount && i < size; i++) {
@SuppressWarnings("unchecked")
final E element = (E) elementData[i];
if (filter.test(element)) {
// 假如第i个元素符合条件，则把removeSet中的对应位设置为true，标记这个元素需要被删除
removeSet.set(i);
removeCount++;
}
}
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
final boolean anyToRemove = removeCount > 0;
if (anyToRemove) {
final int newSize = size - removeCount;
// 将没被删除的元素移动到ArrayList的最左边
for (int i=0, j=0; (i < size) && (j < newSize); i++, j++) {
// 从当前位置开始，获取下一个标记为false的位置，也就是下一个不被删除的元素位置
i = removeSet.nextClearBit(i);
elementData[j] = elementData[i];
}
for (int k=newSize; k < size; k++) {
elementData[k] = null;
}
this.size = newSize;
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
modCount++;
}
return anyToRemove;
}
@Override
@SuppressWarnings("unchecked")
public void replaceAll(UnaryOperator<E> operator) {
Objects.requireNonNull(operator);
final int expectedModCount = modCount;
final int size = this.size;
// 相对于List接口的默认实现，遍历方式从ListIterator改为了数组for循环遍历
for (int i=0; modCount == expectedModCount && i < size; i++) {
elementData[i] = operator.apply((E) elementData[i]);
}
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
modCount++;
}
@Override
@SuppressWarnings("unchecked")
public void sort(Comparator<? super E> c) {
final int expectedModCount = modCount;
Arrays.sort((E[]) elementData, 0, size, c);
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
modCount++;
}
}
PREVIOUSSpring声明式事务
