本文源码基于JDK8

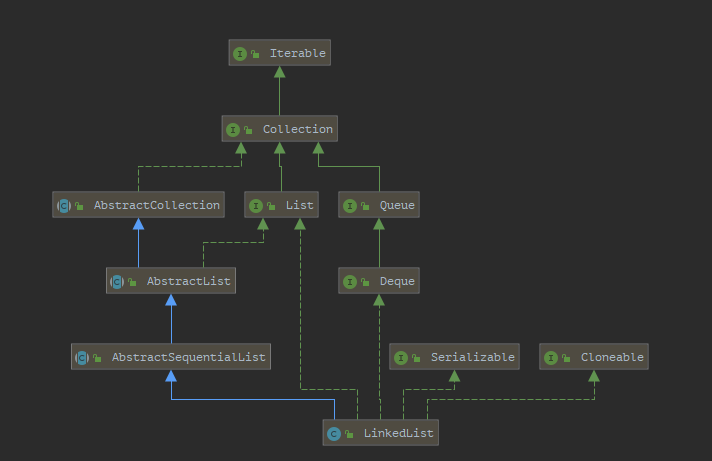

LinkedList类继承关系
Iterator接口
public interface Iterator<E> {
// 检测是否还有下一个元素
boolean hasNext();
// 返回下一个元素
E next();
// 将上一次next方法返回的元素删除
default void remove() {
// 抛出异常
throw new UnsupportedOperationException("remove");
}
// 对剩余的所有元素调用Consumer
default void forEachRemaining(Consumer<? super E> action) {
Objects.requireNonNull(action);
while (hasNext())
action.accept(next());
}
}
Iterable接口
public interface Iterable<T> {
// 返回一个用于遍历容器的Iterator
Iterator<T> iterator();
// 直接遍历容器，接口默认实现，对每个元素调用action
default void forEach(Consumer<? super T> action) {
Objects.requireNonNull(action);
for (T t : this) {
action.accept(t);
}
}
// 返回一个用于并行遍历容器的Spliterator
default Spliterator<T> spliterator() {
return Spliterators.spliteratorUnknownSize(iterator(), 0);
}
}
Collection接口
public interface Collection<E> extends Iterable<E> {
// 查询操作
// 返回容器元素数量
int size();
// 判断容器是否为空
boolean isEmpty();
// 判断容器是否包含某元素
boolean contains(Object o);
// 重复定义Iterable接口方法
// 返回一个用于遍历容器的Iterator
Iterator<E> iterator();
// 容器转换为数组
Object[] toArray();
<T> T[] toArray(T[] a);
// 修改操作
// 增加一个元素
boolean add(E e);
// 删除一个元素
boolean remove(Object o);
// 批量操作
// 判断是否包含另一个容器的所有元素
boolean containsAll(Collection<?> c);
// 加入另一个容器的所有元素
boolean addAll(Collection<? extends E> c);
// 删除另一个容器存在的所有元素
boolean removeAll(Collection<?> c);
// 删除符合条件的元素
default boolean removeIf(Predicate<? super E> filter) {
Objects.requireNonNull(filter);
boolean removed = false;
final Iterator<E> each = iterator();
while (each.hasNext()) {
if (filter.test(each.next())) {
each.remove();
removed = true;
}
}
return removed;
}
// 保留另一个容器存在的所有元素
boolean retainAll(Collection<?> c);
// 清除容器所有元素
void clear();
// 比较和哈希
// 判断两个容器是否相等
boolean equals(Object o);
// 计算哈希值
int hashCode();
// 返回一个用于并行遍历容器的Spliterator，重写了Iterable接口的默认实现
@Override
default Spliterator<E> spliterator() {
return Spliterators.spliterator(this, 0);
}
// 容器流处理
default Stream<E> stream() {
return StreamSupport.stream(spliterator(), false);
}
// 容器并行流处理
default Stream<E> parallelStream() {
return StreamSupport.stream(spliterator(), true);
}
AbstractCollection抽象类
public abstract class AbstractCollection<E> implements Collection<E> {
// 构造方法，仅供子类调用
protected AbstractCollection() {
}
// 重复定义Collection接口的iterator方法
public abstract Iterator<E> iterator();
// 重复定义Collection接口的size方法
public abstract int size();
public boolean isEmpty() {
// 容器元素个数为0，判断为空，否则不为空
return size() == 0;
}
public boolean contains(Object o) {
// 使用iterator遍历所有元素
Iterator<E> it = iterator();
if (o==null) {
// null与null比较
while (it.hasNext())
if (it.next()==null)
return true;
} else {
// 非null则使用equals方法判断是否相等
while (it.hasNext())
if (o.equals(it.next()))
return true;
}
return false;
}
public Object[] toArray() {
// 使用size方法估计需要的数组长度。并发修改的情况下，可能这并非最终的数组长度
Object[] r = new Object[size()];
Iterator<E> it = iterator();
for (int i = 0; i < r.length; i++) {
if (! it.hasNext())
// 比原估计长度小
return Arrays.copyOf(r, i);
r[i] = it.next();
}
// 比原估计长度大，需要再调用finishToArray方法
return it.hasNext() ? finishToArray(r, it) : r;
}
@SuppressWarnings("unchecked")
public <T> T[] toArray(T[] a) {
// 使用size方法估计需要的数组长度。并发修改的情况下，可能这并非最终的数组长度
int size = size();
// 传入参数提供的数组足够长度足够，则直接使用。否则根据提供的数组元素类型，按size方法的长度生成新的数组
T[] r = a.length >= size ? a :
(T[])java.lang.reflect.Array
.newInstance(a.getClass().getComponentType(), size);
Iterator<E> it = iterator();
for (int i = 0; i < r.length; i++) {
if (! it.hasNext()) {
// 比原估计长度小
if (a == r) {
// 使用的是传入参数的数组，后面补null
r[i] = null;
} else if (a.length < i) {
// 假如传入参数提供的数组现在长度还是不够，则复制一个当前长度的数组
return Arrays.copyOf(r, i);
} else {
// 假如传入参数提供的数组现在长度足够，使用回这个数组，把元素复制过去
System.arraycopy(r, 0, a, 0, i);
// 后面补null
if (a.length > i) {
a[i] = null;
}
}
return a;
}
// 强制转型
r[i] = (T)it.next();
}
// 比原估计长度大，需要再调用finishToArray方法
return it.hasNext() ? finishToArray(r, it) : r;
}
// 最大数组大小。Java数组length属性类型是int
private static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;
@SuppressWarnings("unchecked")
private static <T> T[] finishToArray(T[] r, Iterator<?> it) {
// 将iterator未复制完的元素继续复制到数组中
// 数组r已满，下一个要处理的数组index为r.length
int i = r.length;
while (it.hasNext()) {
// 设置cap值，用于检测当前index是否已超出数组边界
int cap = r.length;
if (i == cap) {
// 当前处理的index超出数组边界，则扩容
int newCap = cap + (cap >> 1) + 1;
// 扩容后长度大于数组最大长度的处理，调用hugeCapacity方法
if (newCap - MAX_ARRAY_SIZE > 0)
newCap = hugeCapacity(cap + 1);
r = Arrays.copyOf(r, newCap);
}
r[i++] = (T)it.next();
}
// 复制完后如数组有未使用的空间，将其缩减
return (i == r.length) ? r : Arrays.copyOf(r, i);
}
private static int hugeCapacity(int minCapacity) {
// 最小扩容，只把长度加1
// 长度为负数则表示长度已大于最大int，抛出错误
if (minCapacity < 0)
throw new OutOfMemoryError
("Required array size too large");
// 长度比数组最大长度大，则扩容到最大int，否则扩容到数组最大长度
return (minCapacity > MAX_ARRAY_SIZE) ?
Integer.MAX_VALUE :
MAX_ARRAY_SIZE;
}
// 修改操作
public boolean add(E e) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public boolean remove(Object o) {
// 使用iterator方法返回的iterator遍历容器
Iterator<E> it = iterator();
if (o==null) {
while (it.hasNext()) {
if (it.next()==null) {
// 通过iterator的remove方法删除相应的元素
it.remove();
return true;
}
}
} else {
while (it.hasNext()) {
if (o.equals(it.next())) {
// 通过iterator的remove方法删除相应的元素
it.remove();
return true;
}
}
}
return false;
}
// 批处理操作
public boolean containsAll(Collection<?> c) {
// 对传入参数的容器各元素调用contains方法
for (Object e : c)
if (!contains(e))
return false;
return true;
}
public boolean addAll(Collection<? extends E> c) {
boolean modified = false;
// 将传入参数的容器元素逐一加入
for (E e : c)
if (add(e))
modified = true;
return modified;
}
public boolean removeAll(Collection<?> c) {
Objects.requireNonNull(c);
boolean modified = false;
Iterator<?> it = iterator();
while (it.hasNext()) {
if (c.contains(it.next())) {
// 通过iterator的remove方法删除相应的元素
it.remove();
modified = true;
}
}
return modified;
}
public boolean retainAll(Collection<?> c) {
Objects.requireNonNull(c);
boolean modified = false;
Iterator<E> it = iterator();
while (it.hasNext()) {
// 与removeAll方法相反
if (!c.contains(it.next())) {
it.remove();
modified = true;
}
}
return modified;
}
public void clear() {
Iterator<E> it = iterator();
while (it.hasNext()) {
it.next();
it.remove();
}
}
// 字符串转换
public String toString() {
Iterator<E> it = iterator();
if (! it.hasNext())
return "[]";
StringBuilder sb = new StringBuilder();
sb.append('[');
for (;;) {
E e = it.next();
// 防止无限递归
sb.append(e == this ? "(this Collection)" : e);
if (! it.hasNext())
return sb.append(']').toString();
sb.append(',').append(' ');
}
}
}
ListIterator接口
public interface ListIterator<E> extends Iterator<E> {
// 检测是否有下一个元素
boolean hasNext();
// 返回下一个元素
E next();
// 检测是否有上一个元素
boolean hasPrevious();
// 返回上一个元素
E previous();
// 返回下一个元素的index
int nextIndex();
// 返回上一个元素的index
int previousIndex();
// 删除上一次调用next或previous方法返回的元素，且调用remove之前不能有调用过add
void remove();
// 替换上一次调用next或previous方法返回的元素，且调用set之前不能有调用add或remove
void set(E e);
// 在当前游标前面增加元素
void add(E e);
}
List接口
public interface List<E> extends Collection<E> {
// 重复定义Collection接口方法
int size();
boolean isEmpty();
boolean contains(Object o);
Iterator<E> iterator();
Object[] toArray();
<T> T[] toArray(T[] a);
boolean add(E e);
boolean remove(Object o);
boolean containsAll(Collection<?> c);
boolean addAll(Collection<? extends E> c);
boolean removeAll(Collection<?> c);
boolean retainAll(Collection<?> c);
void clear();
boolean equals(Object o);
int hashCode();
// 重载Collection接口的addAll方法
// 将c容器内的所有元素从List的index位置开始插入
boolean addAll(int index, Collection<? extends E> c);
// 对List每个元素进行替换操作
default void replaceAll(UnaryOperator<E> operator) {
Objects.requireNonNull(operator);
final ListIterator<E> li = this.listIterator();
// 遍历容器所有元素
while (li.hasNext()) {
// 对每个元素施加操作，并将操作后的对象替换到List的原位置
li.set(operator.apply(li.next()));
}
}
// 排序
@SuppressWarnings({"unchecked", "rawtypes"})
default void sort(Comparator<? super E> c) {
// 转数组并依据Comparator排序
Object[] a = this.toArray();
Arrays.sort(a, (Comparator) c);
ListIterator<E> i = this.listIterator();
// 将数组内的元素按顺序放回List
for (Object e : a) {
i.next();
i.set((E) e);
}
}
// 返回相应位置的元素
E get(int index);
// 替换相应位置的元素
E set(int index, E element);
// 在相应位置插入元素
void add(int index, E element);
// 删除相应位置的元素
E remove(int index);
// 返回第一次出现的索引值
int indexOf(Object o);
// 返回最后一次出现的索引值
int lastIndexOf(Object o);
// 返回ListIterator
ListIterator<E> listIterator();
// 返回ListIterator，开始位置为index
ListIterator<E> listIterator(int index);
// 返回子List，index范围包前不包后。子List依赖原List，数据改变会相互影响
List<E> subList(int fromIndex, int toIndex);
// 返回一个用于并行遍历容器的Spliterator，重写了Collection接口的默认实现
@Override
default Spliterator<E> spliterator() {
return Spliterators.spliterator(this, Spliterator.ORDERED);
}
}
AbstractList抽象类
public abstract class AbstractList<E> extends AbstractCollection<E> implements List<E> {
// 构造方法，仅供子类调用
protected AbstractList() {
}
public boolean add(E e) {
// 调用重载方法，新增元素放在尾部
add(size(), e);
return true;
}
// 重复定义List接口的get方法
abstract public E get(int index);
public E set(int index, E element) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public void add(int index, E element) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public E remove(int index) {
// 抛出异常，不支持此操作
throw new UnsupportedOperationException();
}
public int indexOf(Object o) {
// 使用ListIterator遍历容器，找到元素则返回index
ListIterator<E> it = listIterator();
if (o==null) {
while (it.hasNext())
if (it.next()==null)
return it.previousIndex();
} else {
while (it.hasNext())
if (o.equals(it.next()))
return it.previousIndex();
}
return -1;
}
public int lastIndexOf(Object o) {
// 使用ListIterator反向遍历容器，找到元素则返回index
ListIterator<E> it = listIterator(size());
if (o==null) {
while (it.hasPrevious())
if (it.previous()==null)
return it.nextIndex();
} else {
while (it.hasPrevious())
if (o.equals(it.previous()))
return it.nextIndex();
}
return -1;
}
// 重写了AbstractCollection的实现
public void clear() {
removeRange(0, size());
}
public boolean addAll(int index, Collection<? extends E> c) {
rangeCheckForAdd(index);
boolean modified = false;
for (E e : c) {
// 从index位置逐一添加元素
add(index++, e);
modified = true;
}
return modified;
}
// 返回Iterator
public Iterator<E> iterator() {
return new Itr();
}
// 返回起始位置为0的ListIterator
public ListIterator<E> listIterator() {
return listIterator(0);
}
// 返回起始位置为index的ListIterator
public ListIterator<E> listIterator(final int index) {
rangeCheckForAdd(index);
return new ListItr(index);
}
// 实现Iterator接口的内部类
private class Itr implements Iterator<E> {
// 下一次调用next要返回的元素index
int cursor = 0;
// 最近一次调用next或previous返回的元素的index，调用remove后将重置为-1
int lastRet = -1;
// Iterator期望List的modCount值，假如与真实modCount值不相等，则认为有并发修改
int expectedModCount = modCount;
public boolean hasNext() {
// cursor值不等于size()，则认为有下个元素
return cursor != size();
}
public E next() {
checkForComodification();
try {
int i = cursor;
// 获取游标所指的元素
E next = get(i);
lastRet = i;
// 游标向后移动
cursor = i + 1;
return next;
} catch (IndexOutOfBoundsException e) {
checkForComodification();
throw new NoSuchElementException();
}
}
public void remove() {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
// 调用List的remove方法删除元素
AbstractList.this.remove(lastRet);
if (lastRet < cursor)
// 如remove之前调用的是next，lastRet == cursor - 1，调整游标
// 如remove之前调用的是previous，此时lastRet == cursor，不调整游标
cursor--;
lastRet = -1;
// List的modCount应该已改变，需要刷新expectedModCount
expectedModCount = modCount;
} catch (IndexOutOfBoundsException e) {
throw new ConcurrentModificationException();
}
}
// 检查并发修改
final void checkForComodification() {
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
}
}
// 实现ListIterator接口的内部类，继承了Itr类
private class ListItr extends Itr implements ListIterator<E> {
// 构造方法指定游标位置
ListItr(int index) {
cursor = index;
}
public boolean hasPrevious() {
// 游标不为0，则认为存在前一个元素
return cursor != 0;
}
public E previous() {
checkForComodification();
try {
int i = cursor - 1;
// 获取游标的前一个元素
E previous = get(i);
// 游标向前移动
lastRet = cursor = i;
return previous;
} catch (IndexOutOfBoundsException e) {
checkForComodification();
throw new NoSuchElementException();
}
}
public int nextIndex() {
return cursor;
}
public int previousIndex() {
return cursor-1;
}
public void set(E e) {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
// 调用List的set方法替换元素
AbstractList.this.set(lastRet, e);
// List的modCount应该已改变，需要刷新expectedModCount
expectedModCount = modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
public void add(E e) {
checkForComodification();
try {
int i = cursor;
// 调用List的add方法增加元素
AbstractList.this.add(i, e);
lastRet = -1;
// 相当于在游标前插入，不影响next的遍历
cursor = i + 1;
// List的modCount应该已改变，需要刷新expectedModCount
expectedModCount = modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
}
public List<E> subList(int fromIndex, int toIndex) {
// 根据当前List是否实现RamdonAccess确定子List的类型
return (this instanceof RandomAccess ?
new RandomAccessSubList<>(this, fromIndex, toIndex) :
new SubList<>(this, fromIndex, toIndex));
}
// 都是List，长度相等，相同位置的元素相等，判断为相等
public boolean equals(Object o) {
if (o == this)
return true;
if (!(o instanceof List))
return false;
ListIterator<E> e1 = listIterator();
ListIterator<?> e2 = ((List<?>) o).listIterator();
while (e1.hasNext() && e2.hasNext()) {
E o1 = e1.next();
Object o2 = e2.next();
if (!(o1==null ? o2==null : o1.equals(o2)))
return false;
}
return !(e1.hasNext() || e2.hasNext());
}
public int hashCode() {
int hashCode = 1;
for (E e : this)
hashCode = 31*hashCode + (e==null ? 0 : e.hashCode());
return hashCode;
}
// 范围删除元素，index包前不包后
protected void removeRange(int fromIndex, int toIndex) {
ListIterator<E> it = listIterator(fromIndex);
// 从fromIndex开始删除，删除toIndex-fromIndex个元素
for (int i=0, n=toIndex-fromIndex; i<n; i++) {
it.next();
it.remove();
}
}
// List结构性改变次数标记
protected transient int modCount = 0;
// 检查index值是否超出添加元素范围，size()值合法
private void rangeCheckForAdd(int index) {
if (index < 0 || index > size())
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private String outOfBoundsMsg(int index) {
return "Index: "+index+", Size: "+size();
}
}
// 子List，依赖原List实现功能，并作范围限制
class SubList<E> extends AbstractList<E> {
private final AbstractList<E> l;
private final int offset;
private int size;
SubList(AbstractList<E> list, int fromIndex, int toIndex) {
if (fromIndex < 0)
throw new IndexOutOfBoundsException("fromIndex = " + fromIndex);
if (toIndex > list.size())
throw new IndexOutOfBoundsException("toIndex = " + toIndex);
if (fromIndex > toIndex)
throw new IllegalArgumentException("fromIndex(" + fromIndex +
") > toIndex(" + toIndex + ")");
l = list;
offset = fromIndex;
size = toIndex - fromIndex;
this.modCount = l.modCount;
}
public E set(int index, E element) {
rangeCheck(index);
checkForComodification();
return l.set(index+offset, element);
}
public E get(int index) {
rangeCheck(index);
checkForComodification();
return l.get(index+offset);
}
public int size() {
checkForComodification();
return size;
}
public void add(int index, E element) {
rangeCheckForAdd(index);
checkForComodification();
l.add(index+offset, element);
this.modCount = l.modCount;
size++;
}
public E remove(int index) {
rangeCheck(index);
checkForComodification();
E result = l.remove(index+offset);
this.modCount = l.modCount;
size--;
return result;
}
protected void removeRange(int fromIndex, int toIndex) {
checkForComodification();
l.removeRange(fromIndex+offset, toIndex+offset);
this.modCount = l.modCount;
size -= (toIndex-fromIndex);
}
public boolean addAll(Collection<? extends E> c) {
return addAll(size, c);
}
public boolean addAll(int index, Collection<? extends E> c) {
rangeCheckForAdd(index);
int cSize = c.size();
if (cSize==0)
return false;
checkForComodification();
l.addAll(offset+index, c);
this.modCount = l.modCount;
size += cSize;
return true;
}
public Iterator<E> iterator() {
return listIterator();
}
public ListIterator<E> listIterator(final int index) {
checkForComodification();
rangeCheckForAdd(index);
return new ListIterator<E>() {
private final ListIterator<E> i = l.listIterator(index+offset);
public boolean hasNext() {
return nextIndex() < size;
}
public E next() {
if (hasNext())
return i.next();
else
throw new NoSuchElementException();
}
public boolean hasPrevious() {
return previousIndex() >= 0;
}
public E previous() {
if (hasPrevious())
return i.previous();
else
throw new NoSuchElementException();
}
public int nextIndex() {
return i.nextIndex() - offset;
}
public int previousIndex() {
return i.previousIndex() - offset;
}
public void remove() {
i.remove();
SubList.this.modCount = l.modCount;
size--;
}
public void set(E e) {
i.set(e);
}
public void add(E e) {
i.add(e);
SubList.this.modCount = l.modCount;
size++;
}
};
}
public List<E> subList(int fromIndex, int toIndex) {
return new SubList<>(this, fromIndex, toIndex);
}
private void rangeCheck(int index) {
if (index < 0 || index >= size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private void rangeCheckForAdd(int index) {
if (index < 0 || index > size)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private String outOfBoundsMsg(int index) {
return "Index: "+index+", Size: "+size;
}
private void checkForComodification() {
if (this.modCount != l.modCount)
throw new ConcurrentModificationException();
}
}
// 相比SubList，多实现了RandomAccess接口
class RandomAccessSubList<E> extends SubList<E> implements RandomAccess {
RandomAccessSubList(AbstractList<E> list, int fromIndex, int toIndex) {
super(list, fromIndex, toIndex);
}
public List<E> subList(int fromIndex, int toIndex) {
return new RandomAccessSubList<>(this, fromIndex, toIndex);
}
}
AbstractSequentialList抽象类
public abstract class AbstractSequentialList<E> extends AbstractList<E> {
// 构造方法仅供子类调用
protected AbstractSequentialList() {
}
// 使用listIterator实现各方法
public E get(int index) {
try {
return listIterator(index).next();
} catch (NoSuchElementException exc) {
throw new IndexOutOfBoundsException("Index: "+index);
}
}
public E set(int index, E element) {
try {
ListIterator<E> e = listIterator(index);
E oldVal = e.next();
e.set(element);
return oldVal;
} catch (NoSuchElementException exc) {
throw new IndexOutOfBoundsException("Index: "+index);
}
}
public void add(int index, E element) {
try {
listIterator(index).add(element);
} catch (NoSuchElementException exc) {
throw new IndexOutOfBoundsException("Index: "+index);
}
}
public E remove(int index) {
try {
ListIterator<E> e = listIterator(index);
E outCast = e.next();
e.remove();
return outCast;
} catch (NoSuchElementException exc) {
throw new IndexOutOfBoundsException("Index: "+index);
}
}
public boolean addAll(int index, Collection<? extends E> c) {
try {
boolean modified = false;
ListIterator<E> e1 = listIterator(index);
Iterator<? extends E> e2 = c.iterator();
while (e2.hasNext()) {
e1.add(e2.next());
modified = true;
}
return modified;
} catch (NoSuchElementException exc) {
throw new IndexOutOfBoundsException("Index: "+index);
}
}
public Iterator<E> iterator() {
return listIterator();
}
// 重新定义List接口的listIterator方法。父类AbstractList类实现了此方法
public abstract ListIterator<E> listIterator(int index);
}
Queue接口
public interface Queue<E> extends Collection<E> {
// 插入一个元素到队尾，无法插入则抛异常
boolean add(E e);
// 插入一个元素到队尾，无法插入则返回false
boolean offer(E e);
// 访问并移除队头的元素，队列为空无法移除则抛异常
E remove();
// 访问并移除队头的元素，队列为空无法移除则返回null
E poll();
// 访问头元素，队列为空则抛异常
E element();
// 访问头元素，队列为空则返回null
E peek();
}
Deque接口
public interface Deque<E> extends Queue<E> {
// 插入一个元素到双端队列的队头，无法插入则抛异常
void addFirst(E e);
// 插入一个元素到双端队列的队尾，无法插入则抛异常
void addLast(E e);
// 插入一个元素到双端队列的队头，无法插入则返回false
boolean offerFirst(E e);
// 插入一个元素到双端队列的队尾，无法插入则返回false
boolean offerLast(E e);
// 访问并移除队头的元素，队列为空无法移除则抛异常
E removeFirst();
// 访问并移除队尾的元素，队列为空无法移除则抛异常
E removeLast();
// 访问并移除队头的元素，队列为空无法移除则返回null
E pollFirst();
// 访问并移除队尾的元素，队列为空无法移除则返回null
E pollLast();
// 访问头元素，队列为空则抛异常
E getFirst();
// 访问尾元素，队列为空则抛异常
E getLast();
// 访问头元素，队列为空则返回null
E peekFirst();
// 访问尾元素，队列为空则返回null
E peekLast();
// 移除第一次出现的元素
boolean removeFirstOccurrence(Object o);
// 移除最后一次出现的元素
boolean removeLastOccurrence(Object o);
// 重复定义Queue接口的方法
boolean add(E e);
boolean offer(E e);
E remove();
E poll();
E element();
E peek();
// 将元素压入双端队列代表的栈，也就是放到队头。无法压入则抛异常
void push(E e);
// 将元素弹出双端队列代表的栈，也就是访问队头元素并移除。无法移除则抛异常
E pop();
// 重复定义Coolection接口的方法
boolean remove(Object o);
boolean contains(Object o);
public int size();
// 重复定义Iterable接口的方法
Iterator<E> iterator();
// 返回一个逆序的Iterator
Iterator<E> descendingIterator();
}
LinkedList
public class LinkedList<E>
extends AbstractSequentialList<E>
implements List<E>, Deque<E>, Cloneable, java.io.Serializable
{
// LinkedList的长度
transient int size = 0;
// 指向链表的第一个元素的指针
transient Node<E> first;
// 指向链表最后一个元素的指针
transient Node<E> last;
// 构造一个空的LinkedList
public LinkedList() {
}
// 构造一个包含c所有元素的LinkedList
public LinkedList(Collection<? extends E> c) {
this();
addAll(c);
}
// 将元素e连接到链表头
private void linkFirst(E e) {
final Node<E> f = first;
final Node<E> newNode = new Node<>(null, e, f);
first = newNode;
if (f == null)
last = newNode;
else
f.prev = newNode;
size++;
modCount++;
}
// 将元素e连接到链表尾
void linkLast(E e) {
final Node<E> l = last;
final Node<E> newNode = new Node<>(l, e, null);
last = newNode;
if (l == null)
first = newNode;
else
l.next = newNode;
size++;
modCount++;
}
// 在节点succ前连接元素e
void linkBefore(E e, Node<E> succ) {
// assert succ != null;
final Node<E> pred = succ.prev;
final Node<E> newNode = new Node<>(pred, e, succ);
succ.prev = newNode;
if (pred == null)
first = newNode;
else
pred.next = newNode;
size++;
modCount++;
}
// 解开链表头第一个节点
private E unlinkFirst(Node<E> f) {
// assert f == first && f != null;
final E element = f.item;
final Node<E> next = f.next;
f.item = null;
f.next = null; // help GC
first = next;
if (next == null)
last = null;
else
next.prev = null;
size--;
modCount++;
return element;
}
// 解开链表尾最后一个节点
private E unlinkLast(Node<E> l) {
// assert l == last && l != null;
final E element = l.item;
final Node<E> prev = l.prev;
l.item = null;
l.prev = null; // help GC
last = prev;
if (prev == null)
first = null;
else
prev.next = null;
size--;
modCount++;
return element;
}
// 解开链表中的节点x
E unlink(Node<E> x) {
// assert x != null;
final E element = x.item;
final Node<E> next = x.next;
final Node<E> prev = x.prev;
if (prev == null) {
first = next;
} else {
prev.next = next;
x.prev = null;
}
if (next == null) {
last = prev;
} else {
next.prev = prev;
x.next = null;
}
x.item = null;
size--;
modCount++;
return element;
}
// 对底层链表操作实现Deque接口的方法
public E getFirst() {
final Node<E> f = first;
if (f == null)
throw new NoSuchElementException();
return f.item;
}
public E getLast() {
final Node<E> l = last;
if (l == null)
throw new NoSuchElementException();
return l.item;
}
public E removeFirst() {
final Node<E> f = first;
if (f == null)
throw new NoSuchElementException();
return unlinkFirst(f);
}
public E removeLast() {
final Node<E> l = last;
if (l == null)
throw new NoSuchElementException();
return unlinkLast(l);
}
public void addFirst(E e) {
linkFirst(e);
}
public void addLast(E e) {
linkLast(e);
}
public boolean contains(Object o) {
return indexOf(o) != -1;
}
public int size() {
return size;
}
// 对底层链表操作实现Collection接口的方法
public boolean add(E e) {
linkLast(e);
return true;
}
public boolean remove(Object o) {
if (o == null) {
for (Node<E> x = first; x != null; x = x.next) {
if (x.item == null) {
unlink(x);
return true;
}
}
} else {
for (Node<E> x = first; x != null; x = x.next) {
if (o.equals(x.item)) {
unlink(x);
return true;
}
}
}
return false;
}
public boolean addAll(Collection<? extends E> c) {
return addAll(size, c);
}
public boolean addAll(int index, Collection<? extends E> c) {
checkPositionIndex(index);
Object[] a = c.toArray();
int numNew = a.length;
if (numNew == 0)
return false;
Node<E> pred, succ;
if (index == size) {
succ = null;
pred = last;
} else {
succ = node(index);
pred = succ.prev;
}
for (Object o : a) {
@SuppressWarnings("unchecked") E e = (E) o;
Node<E> newNode = new Node<>(pred, e, null);
if (pred == null)
first = newNode;
else
pred.next = newNode;
pred = newNode;
}
if (succ == null) {
last = pred;
} else {
pred.next = succ;
succ.prev = pred;
}
size += numNew;
modCount++;
return true;
}
public void clear() {
// 将链表节点之间的关联全部取消，帮助GC
for (Node<E> x = first; x != null; ) {
Node<E> next = x.next;
x.item = null;
x.next = null;
x.prev = null;
x = next;
}
first = last = null;
size = 0;
modCount++;
}
// 基于node方法来定位实现位置相关的List接口方法
public E get(int index) {
checkElementIndex(index);
return node(index).item;
}
public E set(int index, E element) {
checkElementIndex(index);
Node<E> x = node(index);
E oldVal = x.item;
x.item = element;
return oldVal;
}
public void add(int index, E element) {
checkPositionIndex(index);
if (index == size)
linkLast(element);
else
linkBefore(element, node(index));
}
public E remove(int index) {
checkElementIndex(index);
return unlink(node(index));
}
// 检查边界
private boolean isElementIndex(int index) {
return index >= 0 && index < size;
}
private boolean isPositionIndex(int index) {
return index >= 0 && index <= size;
}
private String outOfBoundsMsg(int index) {
return "Index: "+index+", Size: "+size;
}
private void checkElementIndex(int index) {
if (!isElementIndex(index))
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
private void checkPositionIndex(int index) {
if (!isPositionIndex(index))
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
// 链表定位的关键方法
Node<E> node(int index) {
// assert isElementIndex(index);
// 判断index位于链表前半部分还是后半部分，然后选择遍历入口
if (index < (size >> 1)) {
Node<E> x = first;
for (int i = 0; i < index; i++)
x = x.next;
return x;
} else {
Node<E> x = last;
for (int i = size - 1; i > index; i--)
x = x.prev;
return x;
}
}
// 从链表头开始遍历找元素
public int indexOf(Object o) {
int index = 0;
if (o == null) {
for (Node<E> x = first; x != null; x = x.next) {
if (x.item == null)
return index;
index++;
}
} else {
for (Node<E> x = first; x != null; x = x.next) {
if (o.equals(x.item))
return index;
index++;
}
}
return -1;
}
// 从链表尾开始遍历找元素
public int lastIndexOf(Object o) {
int index = size;
if (o == null) {
for (Node<E> x = last; x != null; x = x.prev) {
index--;
if (x.item == null)
return index;
}
} else {
for (Node<E> x = last; x != null; x = x.prev) {
index--;
if (o.equals(x.item))
return index;
}
}
return -1;
}
// 实现Queue接口方法
public E peek() {
final Node<E> f = first;
return (f == null) ? null : f.item;
}
public E element() {
return getFirst();
}
public E poll() {
final Node<E> f = first;
return (f == null) ? null : unlinkFirst(f);
}
public E remove() {
return removeFirst();
}
public boolean offer(E e) {
return add(e);
}
// 对底层链表操作实现Deque接口的方法
public boolean offerFirst(E e) {
addFirst(e);
return true;
}
public boolean offerLast(E e) {
addLast(e);
return true;
}
public E peekFirst() {
final Node<E> f = first;
return (f == null) ? null : f.item;
}
public E peekLast() {
final Node<E> l = last;
return (l == null) ? null : l.item;
}
public E pollFirst() {
final Node<E> f = first;
return (f == null) ? null : unlinkFirst(f);
}
public E pollLast() {
final Node<E> l = last;
return (l == null) ? null : unlinkLast(l);
}
public void push(E e) {
addFirst(e);
}
public E pop() {
return removeFirst();
}
public boolean removeFirstOccurrence(Object o) {
return remove(o);
}
public boolean removeLastOccurrence(Object o) {
if (o == null) {
for (Node<E> x = last; x != null; x = x.prev) {
if (x.item == null) {
unlink(x);
return true;
}
}
} else {
for (Node<E> x = last; x != null; x = x.prev) {
if (o.equals(x.item)) {
unlink(x);
return true;
}
}
}
return false;
}
public ListIterator<E> listIterator(int index) {
checkPositionIndex(index);
return new ListItr(index);
}
private class ListItr implements ListIterator<E> {
private Node<E> lastReturned;
private Node<E> next;
private int nextIndex;
private int expectedModCount = modCount;
ListItr(int index) {
// assert isPositionIndex(index);
next = (index == size) ? null : node(index);
nextIndex = index;
}
public boolean hasNext() {
return nextIndex < size;
}
public E next() {
checkForComodification();
if (!hasNext())
throw new NoSuchElementException();
lastReturned = next;
next = next.next;
nextIndex++;
return lastReturned.item;
}
public boolean hasPrevious() {
return nextIndex > 0;
}
public E previous() {
checkForComodification();
if (!hasPrevious())
throw new NoSuchElementException();
lastReturned = next = (next == null) ? last : next.prev;
nextIndex--;
return lastReturned.item;
}
public int nextIndex() {
return nextIndex;
}
public int previousIndex() {
return nextIndex - 1;
}
public void remove() {
checkForComodification();
if (lastReturned == null)
throw new IllegalStateException();
Node<E> lastNext = lastReturned.next;
unlink(lastReturned);
if (next == lastReturned)
next = lastNext;
else
nextIndex--;
lastReturned = null;
expectedModCount++;
}
public void set(E e) {
if (lastReturned == null)
throw new IllegalStateException();
checkForComodification();
lastReturned.item = e;
}
public void add(E e) {
checkForComodification();
lastReturned = null;
if (next == null)
linkLast(e);
else
linkBefore(e, next);
nextIndex++;
expectedModCount++;
}
public void forEachRemaining(Consumer<? super E> action) {
Objects.requireNonNull(action);
while (modCount == expectedModCount && nextIndex < size) {
action.accept(next.item);
lastReturned = next;
next = next.next;
nextIndex++;
}
checkForComodification();
}
final void checkForComodification() {
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
}
}
// 链表节点静态内部类
private static class Node<E> {
E item;
Node<E> next;
Node<E> prev;
Node(Node<E> prev, E element, Node<E> next) {
this.item = element;
this.next = next;
this.prev = prev;
}
}
public Iterator<E> descendingIterator() {
return new DescendingIterator();
}
private class DescendingIterator implements Iterator<E> {
// ListItr反向遍历
private final ListItr itr = new ListItr(size());
public boolean hasNext() {
return itr.hasPrevious();
}
public E next() {
return itr.previous();
}
public void remove() {
itr.remove();
}
}
@SuppressWarnings("unchecked")
private LinkedList<E> superClone() {
try {
return (LinkedList<E>) super.clone();
} catch (CloneNotSupportedException e) {
throw new InternalError(e);
}
}
// 浅拷贝
public Object clone() {
LinkedList<E> clone = superClone();
// Put clone into "virgin" state
clone.first = clone.last = null;
clone.size = 0;
clone.modCount = 0;
// Initialize clone with our elements
for (Node<E> x = first; x != null; x = x.next)
clone.add(x.item);
return clone;
}
public Object[] toArray() {
Object[] result = new Object[size];
int i = 0;
for (Node<E> x = first; x != null; x = x.next)
result[i++] = x.item;
return result;
}
@SuppressWarnings("unchecked")
public <T> T[] toArray(T[] a) {
if (a.length < size)
a = (T[])java.lang.reflect.Array.newInstance(
a.getClass().getComponentType(), size);
int i = 0;
Object[] result = a;
for (Node<E> x = first; x != null; x = x.next)
result[i++] = x.item;
if (a.length > size)
// 转化的数组还有空位，则在最后一个元素的后面赋值null
// 在null不是合法值的数组内，可以帮助判断是否已遍历完该数组
a[size] = null;
return a;
}
private static final long serialVersionUID = 876323262645176354L;
private void writeObject(java.io.ObjectOutputStream s)
throws java.io.IOException {
// Write out any hidden serialization magic
s.defaultWriteObject();
// Write out size
s.writeInt(size);
// Write out all elements in the proper order.
for (Node<E> x = first; x != null; x = x.next)
s.writeObject(x.item);
}
@SuppressWarnings("unchecked")
private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
// Read in any hidden serialization magic
s.defaultReadObject();
// Read in size
int size = s.readInt();
// Read in all elements in the proper order.
for (int i = 0; i < size; i++)
linkLast((E)s.readObject());
}
@Override
public Spliterator<E> spliterator() {
return new LLSpliterator<E>(this, -1, 0);
}
// 跳过Spliterator的分析
/** A customized variant of Spliterators.IteratorSpliterator */
static final class LLSpliterator<E> implements Spliterator<E> {
static final int BATCH_UNIT = 1 << 10; // batch array size increment
static final int MAX_BATCH = 1 << 25; // max batch array size;
final LinkedList<E> list; // null OK unless traversed
Node<E> current; // current node; null until initialized
int est; // size estimate; -1 until first needed
int expectedModCount; // initialized when est set
int batch; // batch size for splits
LLSpliterator(LinkedList<E> list, int est, int expectedModCount) {
this.list = list;
this.est = est;
this.expectedModCount = expectedModCount;
}
final int getEst() {
int s; // force initialization
final LinkedList<E> lst;
if ((s = est) < 0) {
if ((lst = list) == null)
s = est = 0;
else {
expectedModCount = lst.modCount;
current = lst.first;
s = est = lst.size;
}
}
return s;
}
public long estimateSize() { return (long) getEst(); }
public Spliterator<E> trySplit() {
Node<E> p;
int s = getEst();
if (s > 1 && (p = current) != null) {
int n = batch + BATCH_UNIT;
if (n > s)
n = s;
if (n > MAX_BATCH)
n = MAX_BATCH;
Object[] a = new Object[n];
int j = 0;
do { a[j++] = p.item; } while ((p = p.next) != null && j < n);
current = p;
batch = j;
est = s - j;
return Spliterators.spliterator(a, 0, j, Spliterator.ORDERED);
}
return null;
}
public void forEachRemaining(Consumer<? super E> action) {
Node<E> p; int n;
if (action == null) throw new NullPointerException();
if ((n = getEst()) > 0 && (p = current) != null) {
current = null;
est = 0;
do {
E e = p.item;
p = p.next;
action.accept(e);
} while (p != null && --n > 0);
}
if (list.modCount != expectedModCount)
throw new ConcurrentModificationException();
}
public boolean tryAdvance(Consumer<? super E> action) {
Node<E> p;
if (action == null) throw new NullPointerException();
if (getEst() > 0 && (p = current) != null) {
--est;
E e = p.item;
current = p.next;
action.accept(e);
if (list.modCount != expectedModCount)
throw new ConcurrentModificationException();
return true;
}
return false;
}
public int characteristics() {
return Spliterator.ORDERED | Spliterator.SIZED | Spliterator.SUBSIZED;
}
}
}
PREVIOUSJava容器ArrayList源码完整注释
NEXTJava8日期处理
